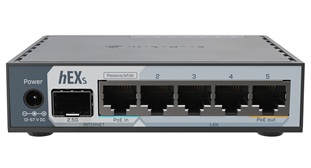

MikroTik hEX S 5 Port Gigabit Ethernet Router with a 2.5 Gbps SFP Port.
The new hEX S is a compact, truly budget-friendly device that does a little bit of everything — and does it fast. Whether you’re building a smart home, running a local lab, or just want a clean, powerful wired setup, this is your new Ethernet essential.
With 5× Gigabit Ethernet ports (including PoE-in on port #1 and PoE-out on port #5), plus a 2.5 Gigabit SFP cage, this compact router can adapt to many roles. And unlike most ISP boxes, you can assign any port as WAN, LAN, or bridge — full flexibility right out of the box. That’s just the beginning. RouterOS v7 gives you advanced routing, VLANs, bonding, traffic shaping, and more so you can build the wired network you’ve always wanted
The new hEX S is a compact, truly budget-friendly device that does a little bit of everything — and does it fast. Whether you’re building a smart home, running a local lab, or just want a clean, powerful wired setup, this is your new Ethernet essential.
With 5× Gigabit Ethernet ports (including PoE-in on port #1 and PoE-out on port #5), plus a 2.5 Gigabit SFP cage, this compact router can adapt to many roles. And unlike most ISP boxes, you can assign any port as WAN, LAN, or bridge — full flexibility right out of the box. That’s just the beginning. RouterOS v7 gives you advanced routing, VLANs, bonding, traffic shaping, and more so you can build the wired network you’ve always wanted
Features
- 2.5 Gbps SFP Uplink
- 5 Gigabit Ethernet plus Bonding support
- PoE In and Out support
- USB 3 for storage and file sharing
- Flexible powering from 12V to 57VDC
| Details | |
|---|---|
| Product code | E60iUGS |
| CPU | Dual-Core EN7562CT 950 MHz |
| Size of RAM | 512 MB |
| RAM type | DDR3 |
| Storage | 128 MB, NAND |
| Number of 1G Ethernet ports | 5 |
| Number of 1G SFP ports | 1 (2.5G supported) |
| USB port | 1 type A |
| Switch chip model | EN7562CT |
| Number of DC inputs | 2 (DC jack, PoE-In) |
| DC jack input Voltage | 12-57 V |
| PoE-In input Voltage | 18-57 V |
| Power adapter nominal voltage | 24 V |
| Power adapter nominal current | 1.2 A |
| PoE-In | 802.3af/at |
| PoE-out | Passive PoE up to 57V |
| Smart PoE | Injector |
| PoE-out port | Ether5 |
| Max out per port output (input < 30 V) | 0.5 A |
| Max out per port output (input > 30 V) | 0.5 A |
| Max power consumption (without attachments) | 5 W |
| Max power consumption | 23 W |
| Dimensions | 113 x 89 x 28 mm |
| Operating system | RouterOS v7, License level 4 |
| Operating temperature | -40°C to +70°C |
| Details | |
|---|---|
| Power Supply | 24VDC 1.2A PSU Included |
RJ45 , SFP
PoE (non standard) , PoE (802.3af/at)
