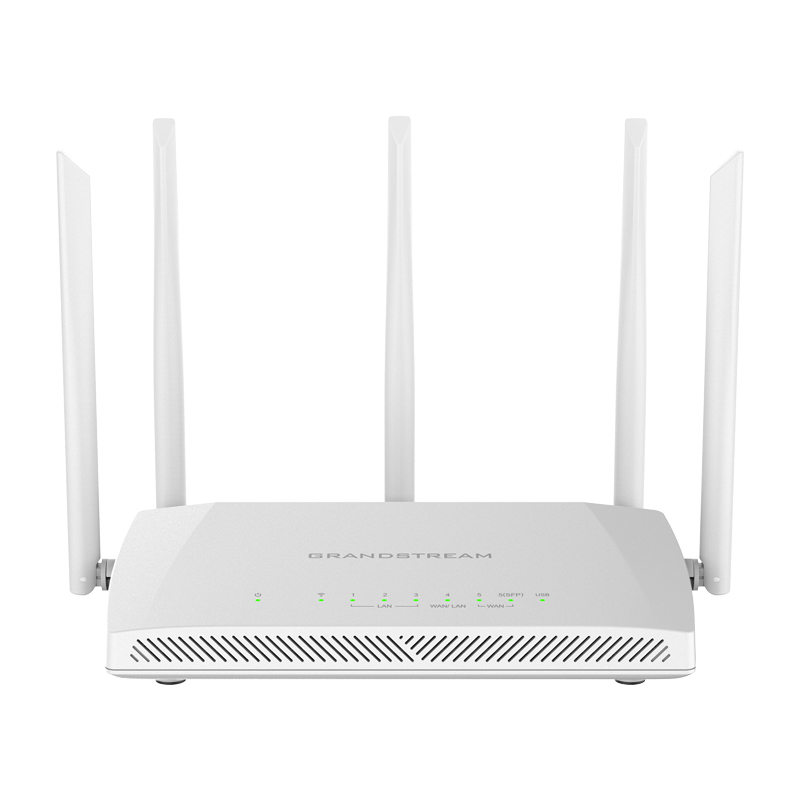

Grandstream GWN7062M AX3000 WiFi 6 2.5Gbps Ethernet Router

$131.00 +GST
Login for your price
9 In Stock
SKU: GWN7062M
Grandstream GWN7062M AX3000 WiFi 6 2.5Gbps Ethernet Router
Warranty
Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*
Supported Platforms
GDMS/GWN Cloud
Description
Specifications
Resources
Package Contents
Grandstream GWN7062M AX3000 WiFi 6 2.5Gbps Ethernet Router, (2x2 2.4GHz, 3x3 5.0 GHz), 1 x 2.5G Combo (RJ45/SFP) WAN, 1 x 2.5 GigE LAN/WAN, 1 x GigE LAN/WAN, 1 x 2.5 GigE, 2 x GigE

The GWN7062M is a dual-band AX3000 secure router based on the latest Wi-Fi 6 (802.11ax) technology. The GWN7062M features one 2.5G combo SFP/RJ45 port and one WAN/LAN autosensing port, enabling flexible network expansion. This router is equipped with a powerful 1.3GHz dual-core processor, delivering up to 3Gbps Wi-Fi speeds and supporting simultaneous connections for up to 256 wireless devices, allowing the GWN7062M to provide robust support for applications such as smart offices, home automation, smooth 4K ultra-high-definition streaming, network meetings, video conferences, and online gaming.

The GWN7062M supports wireless Mesh networking with multiple Grandstream devices, expanding Wi-Fi coverage and enabling seamless roaming. It also supports various VPNs, providing secure and dedicated network connections for remote workers. Advanced parental controls, intelligent security firewalls, and multiple encryption methods ensure the security of the router, clients, and user information at all times.

The GWN7062M supports multiple management methods, including a local web user interface, GDMS Networking, and GWN Manager, Grandstream’s cloud and on-premise network management platform. Additionally, you can use the Grandstream Home App, Grandstream’s mobile unified device management platform, to easily manage your home network and devices. The GWN7062M router also supports intelligent QoS, which used to maintain smooth network operation, and other advanced features, making it an ideal router for evolving home, small office, and commercial network environments.
Features
  • Powered by Wi-Fi 6 (802.11ax) standard with up to 3Gbps wireless throughput
  • Dual-band 2.4G 2x2:2 and 5G 3x3:2 MU-MIMO with technology
  • Built-in VPN support allows easy access to corporate networks for remote employees
  • Supports up to 256 concurrent Wi-Fi client devices
  • Grandstream Home App, Grandstream’s mobile unified device management platform
  • Powerful security features include guest network, network blacklist, Antihacking secure boot & critical data/control lockdown via digital signatures, and more
  • Rich firewall features including Anti-DoS, traffic rules, NAT and ALG
  • Supports Mesh networking with Grandstream routers to provide easy network expansion
Details
Manufacturer's CodeGWN7062M
Wi-Fi Data RatesWi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax
Antenna5 single frequency antennas: 2.4 GHz: gain 5dBi, 5GHz: gain 5dBi
MU-MIMO2.4GHz: 2x2:2, MIMO, 5GHz: 3x3:2, MIMO
Frequency Bands2.4GHz radio: 2400 - 2483.5MHz. 5GHz radio: 5150 - 5895MHz
Maximum TX Power2.4GHz: 24 dBm, 5GHz: 26 dBm
Maximum RX Sensitivity2.4GHz: -96dBm, 5GHz: -92 dBm
Channel BandwidthHT20/40, VHT20/40/80, HE20/40/80/160
Coverage Range150 square meter
Network Ports1x 2.5G Combo SFP/RJ45 Ethernet WAN, 1x autosensing 10/100/1000Mbps Ethernet WAN/LAN, RJ-45, 1x 2.5G Ethernet LAN, RJ-45, 2x 1G Ethernet LAN, RJ-45, 1x USB 2.0 Port
SSIDs4 host SSIDs+1 guest SSID, Restrict access and improve wireless network security by SSID hiding, Dynamically assign radio power, channel
Concurrent Wireless ClientsUp to 256 clients
Working ModeRouter Mode, Wireless Bridge Mode, Wireless Relay Mode
MESHSupports Mesh networking with up to 3 GWN7062M/GWN7062E/GWN7062ET/GWN7660EM devices
WANInternet connection Type: Static IP/DHCP/PPPoE/PPTP/L2TP, support Dual WAN and Failover/Load Balance policy
LANDHCP Server, Manually bind IP address, Supports VLAN and assigning VLAN to port
ISPSupports IGMP, Supports IPTV/VoIP/Triple Play, Supports customised settings for WAN-side VLAN
VPNSupports 8 VPN tunnel total: L2TP Client, PPTP Client, IPSec Site-to-Site & Client-to-Site, OpenVPN Server, WireGuard Site-to-Site & Peer-to-Site,
EncryptionOpen system, WPA/WPA2, WPA2, WPA2/WPA3, WPA3, WPA3-192, Anti-hack security boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
Parental ControlSafe Search, Customized Internet Schedule, UP to 32 Parental Control Clients, Website Filtering, APP Filtering, URL Blocklist
Management PlatformEmbedded controller can manage itself and Mesh Node, GDMS (Networking) offers a free cloud management platform for unlimited GWN Routers, GWN Manager offers premise-based software controller, Grandstream Home App offers unified mobile management platform for easy control, TR-069
LEDs1 tri-color LED and 8x single-color LEDs
Auxiliary Ports1x Reset Pinhole, 1x SYNC, 1x POWER
Maximum Power Consumption18W
PhysicalDimension Unit: 205mm(L) x 130mm(W) x 35.5mm(H), Entire Package: 356mm(L) x 309.5mm(W) x 62mm(H)
WeightUnit: 400g, Entire Package: 855g
MountingDesktop or indoor wall mount
TemperatureOperation: 0°C to 45°C, Storage: -30°C to 60°C
Humidity10% to 90% Non-condensing
ComplianceCC, CE, RCM, IC
Details
IncludedGWN7062M router, Power Adapter, Ethernet Cable, Quick Installation Guide
GDMS/GWN Cloud
1Gbps
Wi-Fi 6
RJ45 , SFP , USB
2.4GHz , 5GHz
DC 12V/1.5A
