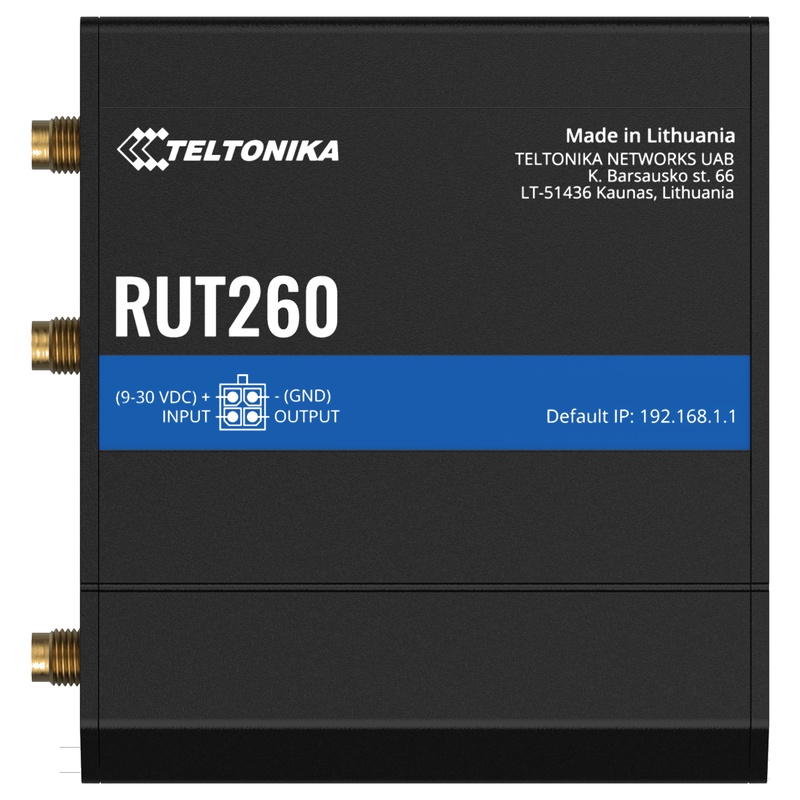

The Teltonika RUT260 CAT 6 LTE Compact WiFi Router with WAN failover. The RUT260 is a Teltonika Networks LTE Cat 6 cellular router with WAN failover. Balancing the key features of the RUT240 and RUT360, this cellular router is powerful, lightweight, and supports a wide variety of industrial protocols, including MQTT, SNMP, Modbus, and more.
Features
- LTE CAT 6 Cellular speeds of up to 300Mbps with carrier aggregation
- WAN failover Automatically switches to an available backup connection
- 2 x 10/100 Mbps Ethernet ports, Digital I/Os
- Compact Small in size and easy to install
| Details | |
|---|---|
| Product Code | Teltonika Networks RUT260 |
| Product Type | Industrial Cellular Router |
| Cellular Technology | 4G LTE Cat 6 / 3G |
| Maximum Cellular Speed | Up to 300 Mbps download / 50 Mbps upload |
| LTE Bands (FDD) | B1, B3, B5, B7, B8, B20, B28, B32 |
| LTE Bands (TDD) | B38, B40, B41, B42, B43 |
| 3G Bands | B1, B3, B5 |
| SIM Type | 1 × Mini SIM (2FF), external SIM holder |
| Ethernet Ports | 2 × 10/100 Mbps RJ45 (1 × WAN, 1 × LAN) |
| Wi‑Fi Standard | Wi‑Fi 4 (802.11b/g/n) |
| Wi‑Fi Modes | Access Point (AP), Station (STA) |
| Maximum Wi‑Fi Clients | Up to 50 simultaneous connections |
| Wi‑Fi Security | WPA2‑PSK, WPA2‑Enterprise, WPA3‑SAE, WPA3‑Enterprise |
| Wireless Features | Mesh (802.11s), Fast roaming (802.11r), 802.11k/v |
| Firewall | Stateful firewall, NAT, port forwarding, custom rules |
| Routing | Static and Dynamic routing (BGP, OSPF v2, RIP v1/v2) |
| Failover | Mobile, Wired WAN, Wi‑Fi WAN |
| Load Balancing | Multiple WAN load balancing supported |
| VPN Support | OpenVPN, IPsec, WireGuard, GRE, L2TP, PPTP, SSTP, DMVPN |
| VPN Encryption | Up to AES‑256 |
| Remote Management | Teltonika RMS |
| Management Interfaces | Web UI, CLI, SSH, SNMP, SMS, TR‑069 |
| IoT & Industrial Protocols | MQTT, Modbus TCP, OPC UA, DNP3, DLMS/COSEM |
| Operating System | RutOS (OpenWrt‑based Linux) |
| Processor | MediaTek, 580 MHz |
| Memory (RAM) | 128 MB DDR2 |
| Flash Storage | 16 MB SPI Flash |
| Digital Inputs | 1 × Digital Input (0–30 V) |
| Digital Outputs | 1 × Digital Output (open collector, 30 V, 300 mA) |
| Power Input | 9–30 V DC, 4‑pin industrial connector |
| Power over Ethernet | Passive PoE (9–30 V, non‑802.3af/at) |
| Power Consumption | Idle < 2 W, Max < 6.5 W |
| Antenna Connectors | 2 × SMA (LTE), 1 × RP‑SMA (Wi‑Fi) |
| LED Indicators | Power, WAN, LAN, signal strength, connection status |
| Ingress Protection | IP30 |
| Operating Temperature | –40 °C to +75 °C |
| Operating Humidity | 10–90% non‑condensing |
| Housing Material | Aluminium housing with plastic panels |
| Dimensions (W × H × D) | 83 × 25 × 74 mm |
| Weight | 130 g |
| Mounting Options | DIN rail, wall mount, flat surface (kits required) |
| Certifications | CE, UKCA, RCM, EAC, WEEE, R118 |
| Details | |
|---|---|
| Included | Router RUT260, 9 W PSU, 2x Mobile antennas (swivel, SMA male), 1x Wi-Fi antenna (swivel, RP-SMA male), Ethernet cable (1.5 m), SIM Adapter kit, QSG (Quick Start Guide) |
Teltonika RMS
100Mbps
4G , Wi-Fi 4
RJ45 , RP-SMA , SMA
600-999MHz , 1700-2100MHz , 2.4GHz
