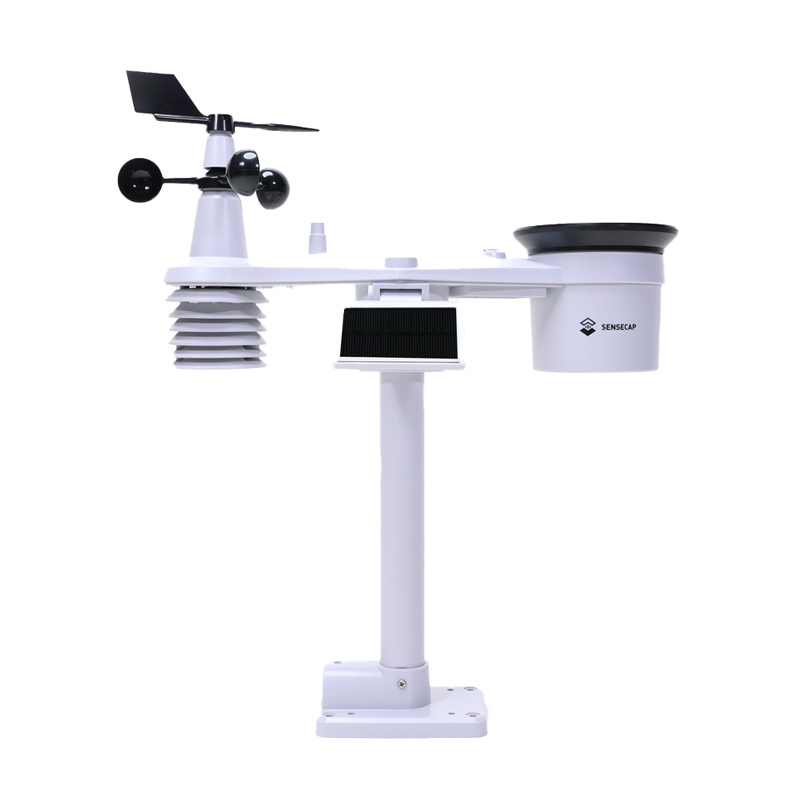

The SenseCAP LoRaWAN SC-S2120 Weather Station collects and uploads air temperature, humidity, wind speed/direction, Rainfall Intensity, light intensity, UV index, and barometric pressure data supported by worldwide LoRaWAN networks. The S2120 weather station is suitable for applications in gardens, agriculture, meteorology, urban environmental monitoring, and other scenarios. It also enables low maintenance cost for its ultra-low power consumption, reliable performance, built-in Bluetooth for OTA configuration and remote device management.
Built-in Bluetooth avoids time-consuming configuration works to bring no code experience to individuals with less or no technical background to quickly get started with weather detection.
We also stock the SenseCAP Sensor Hub 4G Data Logger which can be used with the SenseCAP ONE series weather sensor. The data can be transmitted to the Sensor Hub and then to the SenseCAP server or a private server. If you choose to use the SenseCAP server, we also provide an API for you to easily make your own applications.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
Built-in Bluetooth avoids time-consuming configuration works to bring no code experience to individuals with less or no technical background to quickly get started with weather detection.
We also stock the SenseCAP Sensor Hub 4G Data Logger which can be used with the SenseCAP ONE series weather sensor. The data can be transmitted to the Sensor Hub and then to the SenseCAP server or a private server. If you choose to use the SenseCAP server, we also provide an API for you to easily make your own applications.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
Features
- 8-in-1 Weather Station: Collect air temperature, humidity, wind speed/direction, Rainfall Intensity, light intensity, UV index, and barometric pressure data in one device and upload them via LoRaWAN
- Bluetooth Configuration in 1 min & Remote Management: Simple configuration with just a few clicks, supports remote monitoring and managing real-time & historical data via the SenseCAP Mate App
- Ultra-low Power Consumption, Easily Replaceable Battery & Expandable Capacity: Powered by 0.5W solar panel and 3*standard 1.5V AA size dry batteries with up to 2 years service life
- (support external battery compartment with capacity for six batteries to double the service life)
- Reliable Performance: Suitable for outdoor harsh environments such as high UV exposure, heavy rain, dusty conditions, etc
- One-stop Deployment & Flexible Layout: Accessories include poles, mounting stand, etc. for quick installation and can be set up at almost any location
| Details | |
|---|---|
| Product Model | 101990961 (S2120) |
| Parameters Measured | Air Temperature, Air Humidity, Wind Speed, Wind Direction, Barometric pressure, light intensity,UV Intensity, Precipitation intensity |
| Operating Temperature & Humidity | -20 to +60 °C (Alkaline battery) |
| IP Rating | IP66 |
| Device Weight | 1.5kg |
| Air Temperature Range | -40.0 ~ 80.0 ℃ |
| Accuracy | ±0.5℃ (0~80℃); ±0.6℃ (-40~0℃) |
| Resolution | 0.01 ℃ |
| Air Humidity Range | 0 ~ 99% RH |
| Accuracy | ± 3% RH |
| Resolution | 1% RH |
| Barometric Pressure Range | 540 ~ 1100 hPa |
| Accuracy | ± 5 hPa |
| Resolution | 1 Pa |
| Light Intensity Range | 0 ~ 200000 Lux |
| Accuracy | ± 5% x (measurement value） |
| Resolution | 1 Lux |
| Wind Speed Range | 0 ~ 50 m/s |
| Accuracy | ± 10% |
| Resolution | 0.1 m/s |
| Wind Direction Range | 0 ~ 360 ° |
| Accuracy | ± 8° |
| Resolution | 1° |
| Rainfall Intensity Range | 0 ~ 450 mm/h |
| Accuracy | ± 7% |
| Resolution | 0.254 mm/h |
| LoRaWAN Channel Plan | AS923,AU915 |
| LoRaWAN Max Transmitted Power | 21dBm |
| LoRa Sensitivity | -141dBm@SF12 BW=125KHz |
| Battery Type | AA size 1.5V batteries, alkaline or non-rechargeable Lithium battery |
| Battery Life | 2 years (Solar Panel + 6*AA Battery, 1h/uplink) |
| Details | |
|---|---|
| Package Includes | Weather Station (No Batteries Included), Pole mounting stand, Mounting Clamp, Plastic Pole, Screws and fixings, External Battery Box. |
