The Ubiquiti UniFI Protect Enterprise Network Video Recorder (ENVR) is a 3U NVR with (16) 2.5/3.5” drive bays, supporting up to (70) 4K cameras or (210) Full HD cameras.
Third-Party Camera Support
Scale your surveillance system with ease. UniFi NVRs support seamless integration with ONVIF-compliant third-party cameras, giving you the freedom to expand without sacrificing security or performance.
Device Tags
Use tags to streamline filtering, simplify device management, and enhance control over large-scale deployments.
Deploy 1,000+ Cameras
Deploy 1,000+ Cameras with Enterprise NVR and Vantage Point Scaling.
Mobile App Experience
Monitor, playback, and manage your video footage anytime, anywhere with the UniFi Protect app.
This product is part of the Ubiquiti UniFi Enterprise Partner Program (EPP) and requires Deal Registration approval before purchase.
Please complete this Deal Registration prior to ordering and allow 24-48 hours for approval.
Third-Party Camera Support
Scale your surveillance system with ease. UniFi NVRs support seamless integration with ONVIF-compliant third-party cameras, giving you the freedom to expand without sacrificing security or performance.
Device Tags
Use tags to streamline filtering, simplify device management, and enhance control over large-scale deployments.
Deploy 1,000+ Cameras
Deploy 1,000+ Cameras with Enterprise NVR and Vantage Point Scaling.
Mobile App Experience
Monitor, playback, and manage your video footage anytime, anywhere with the UniFi Protect app.
This product is part of the Ubiquiti UniFi Enterprise Partner Program (EPP) and requires Deal Registration approval before purchase.
Please complete this Deal Registration prior to ordering and allow 24-48 hours for approval.
Features
- (16) 3.5" HDD / SSD support
- (2) 10G SFP+ uplinks and (1) 10 GbE RJ45 port
- Data protection with RAID storage technology
- (2) included hot-swap PSUs for power redundancy
| Details | |
|---|---|
| Manufacturer's Code | ENVR |
| Dimensions | 481.4 x 480 x 132 mm (19 x 18.9 x 5.2") |
| UniFi Application Suite | Protect, Access |
| Managed Cameras | (210) HD, (140) 2K, (70) 4K |
| Managed Access Hubs | 300 |
| Data Protection | Yes |
| Vantage Point | Yes |
| Networking Interface | (2) 10G SFP+ ports, (1) 10 GbE RJ45 port |
| Power Redundancy | Yes |
| Form Factor | Rack Mount (3U) |
| Door Access Support | Yes |
| Hard Drive Capacity | (16) 2.5/3.5" HDD / SSD support |
| Max. Power Budget for Drives | 310W |
| Max. Power Consumption | 410W |
| Power Method | (2) AC input, 100—240V, 7A Max., 50/60Hz (Redundant, hot-swappable) |
| Power Supply | Hot-swappable 550W CRPS |
| Processor | 8-core ARM® at 2.5 GHz |
| Memory | 32 GB |
| Management | Ethernet |

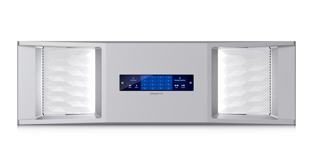

| Display | Bezel (Optional) |
| Weight | Without rails: 16.6 kg (36.6 lb), With rails: 19.5 kg (43.0 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | Aluminum |
| Slide Rails | 482.6 mm (19") four-post racks, Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Details | |
|---|---|
| Power Supply | (2) Power Cord, (2) Hot-swappable 550W CRPS |
| Mounting Hardware | 3U Rackmount, Slide Rails |
| Hard Drives | Not Included (Sold Separately) |
UniFi
RJ45 , SFP+
