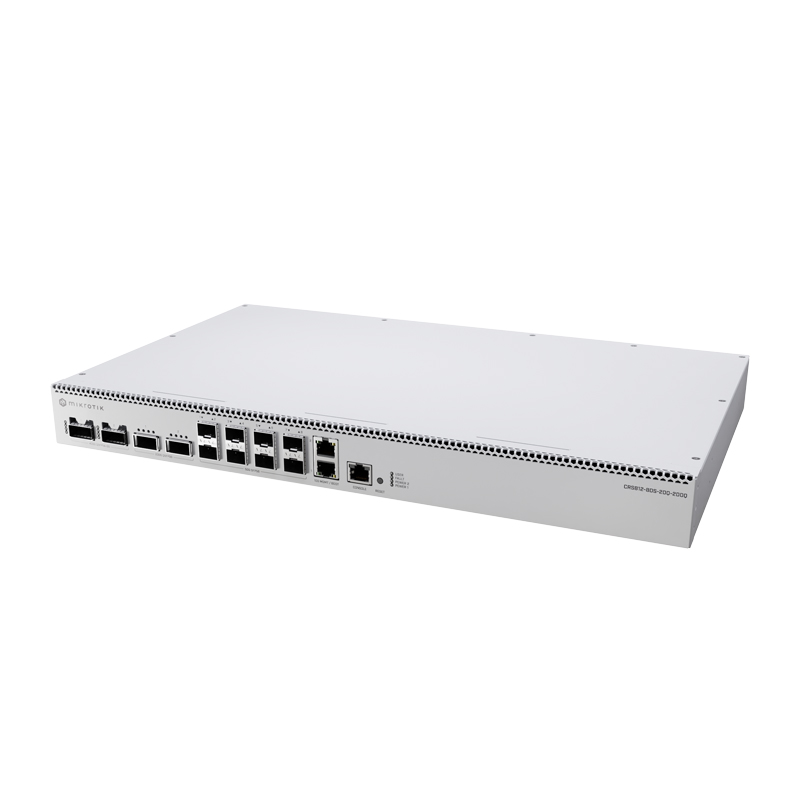

The MikroTik CRS812 DDQ (CRS812-8DS-2DQ-2DDQ-RM) is your next leap forward – a powerful, efficient, and cost-effective way to bring 50G, 200G, and 400G into your rack. Quad-core 2 GHz ARM CPU, dual-redundant power supplies and 4x hot-swap cooling fans, 2x 10G Ethernet, 8x 50G SFP56, 2x 200G QSFP56, and 2x 400G QSFP56-DD ports.
400G used to mean expensive, complex, and out of reach. The CRS812 DDQ changes that! With a modern Marvell switch chip and powerful ARM CPU, it delivers advanced routing, switching, and traffic management features trusted in millions of RouterOS deployments – now with ports up to 400 Gbps!
400G used to mean expensive, complex, and out of reach. The CRS812 DDQ changes that! With a modern Marvell switch chip and powerful ARM CPU, it delivers advanced routing, switching, and traffic management features trusted in millions of RouterOS deployments – now with ports up to 400 Gbps!
Features
- 4 GB of RAM
- Quad-core 2 GHz ARM CPU
- Dual-redundant hot-swap power supplies
- 4x hot-swap cooling fans
- RouterOS v7
| Details | |
|---|---|
| Product code | CRS812-8DS-2DQ-2DDQ-RM |
| CPU | Quad-Core AL52400 2000 MHz |
| CPU architecture | ARM 64bit |
| Size of RAM | 4 GB |
| RAM type | DDR4 |
| Storage | 512 MB, NAND |
| Number of 1G/2.5G/5G/10G Ethernet ports | 2 (supported: 10M/100M/1G/10G) |
| Number of 50G SFP56 ports | 8 |
| Number of 200G QSFP56 ports | 2 |
| Number of 400G QSFP56-DD ports | 2 |
| Switch chip model | 98DX7335 |
| Dimensions | 443 x 268 x 44 mm |
| Operating system | RouterOS v7, License level 6 |
| Operating temparature | -10°C to +50°C |
| Number of AC inputs | 2 |
| AC input range | 100-240 V |
| Power adapter nominal voltage | 12 V |
| Power adapter nominal current | 20.8 A |
| Max power consumption (without attachments) | 81 W |
| Max power consumption | 134 W |
| Details | |
|---|---|
| Power Supply | (2) IEC Power Cords |
| Mounting Hardware | Rackmount Kit Included |
