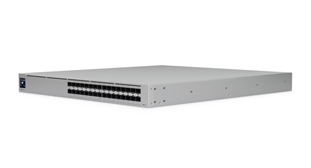

Ubiquiti UniFi Pro XG Aggregation 32-port Layer 3 Etherlighting™ Switch with 25G SFP28

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Description

Specifications

Resources

Package Contents

Ubiquiti UniFi Pro XG Aggregation, Professional-grade 32-port, Layer 3 Etherlighting™ switch for high-capacity 25G SFP28 connections.

Features

1.3" touchscreen with AR switch management
(32) 25G SFP28 ports
DC power backup - requires UniFi power backup system (USP-RPS)
Layer 3 switching features
Etherlighting™ - Identify native VLANs with a glance. Instantly differentiate ports by speed. Find any device in seconds

Details
Manufacturer's Code	USW-Pro-XG-Aggregation
Dimensions	442.4 x 43.7 x 480 mm (17.4 x 1.7 x 18.9")
Port Layout	25G SFP28: 32 (25G/10G/1G)
Redundancy	DC Power Backup
Layer 3	Yes
Form Factor	Rack Mount (1U)
Etherlighting™	Yes
Switching Capacity	1.6 Tbps
Total Non-Blocking Throughput	800 Gbps
Forwarding Rate	1.2 Bpps
Supported VLANs	1,000
MAC Address Table Size	32,000
L3 Table Size	ARP Entries: 128,000, IPv4 Routes: 256,000
Packet Buffer Size	8 MB
Access Lists	IPv4: 256, MAC: 256
Max. Power Consumption	200W
Power Method	(1) Universal input, 100—240V AC, 50/60 Hz, (1) USP RPS DC input
Power Input Method	AC input
Power Supply	AC/DC, internal, 200W
Supported Voltage Range	100—240V AC
Management	Ethernet, AR
Heat Dissipation (Excluding PoE Output)	457 BTU/hr
Weight	Without mounting bracket: 7.1 kg (15.7 lbs), With mounting bracket:7.2 kg (15.9 lbs)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Supported Rack Depth	482.6 mm (19") four-post racks, Posts depths ranging from 600 to 1,066 mm (23.6-42”)
LCM Display	1.3" touchscreen
ESD Protection	Air: ± 12kV, contact: ± 8kV
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
RPS LEDs	Yes
NDAA Compliant	Yes
Certifications	CE, FCC, IC, Anatel: 05977-25-08356
