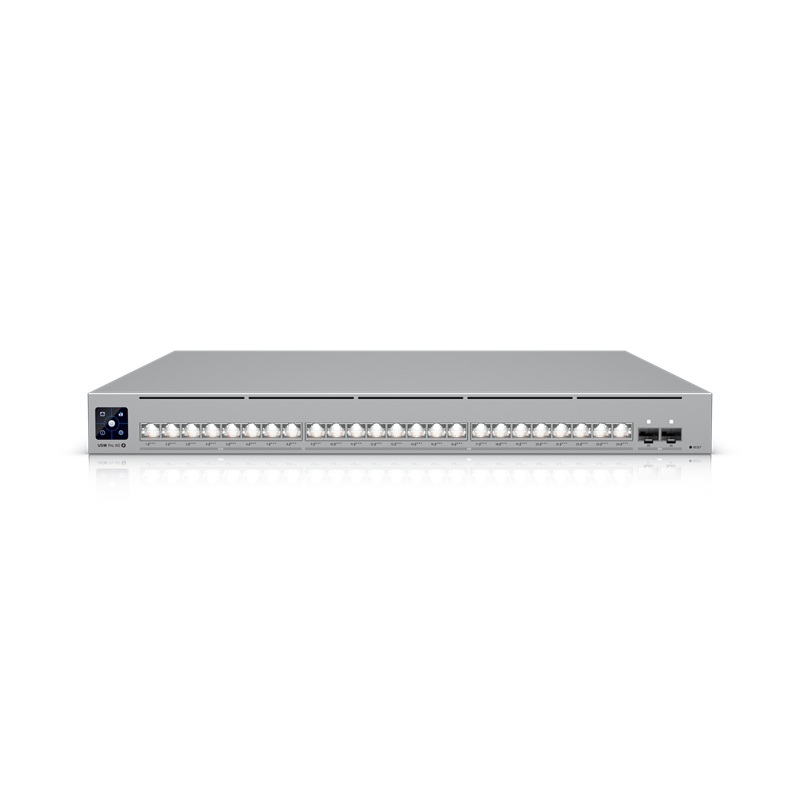

Ubiquiti UniFi Pro XG 24 PoE Professional-grade, 24-port Layer 3 Etherlighting™ PoE+++ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports. Total PoE budget of 720W.

Features

Etherlighting™ - A Cable Management Dream - Identify native VLANs with a glance. Instantly differentiate ports by speed. Find any device in seconds.
Ideal for 6 GHz WiFi Access Points - Featuring 2.5 / 5 / 10 GbE ports for enterprise performance.
PoE+++ Output - Delivers max power and speed for advanced UniFi devices—all through one cable.
Power Redundancy - Keep your UniFi switches online during power failures with seamless backup and automatic failover.

Details
Manufacturer's Code	USW-Pro-XG-24-PoE
Dimensions	442 x 480 x 44 mm (17.4 x 18.9 x 1.7")
2.5 GbE RJ45 Ports	8 (All PoE+++) (2.5G/1G/100M/10M)
10 GbE RJ45 Ports	16 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
25G SFP28 Ports	2 (25G/10G/1G)
Max. PoE Output	Up to PoE+++
Total PoE Availability	720W
Redundancy	DC Power Backup
Layer 3	Yes
Form Factor	Rack mount (1U)
Etherlighting™	Yes
Switching Capacity	460 Gbps
Total Non-Blocking Throughput	230 Gbps
Forwarding Rate	342 Mpps
Supported VLANs	1,000
MAC Address Table Size	128,000
L3 Table Size	ARP Entries: 128,000. IPv4 Routes: 256,000
Packet Buffer Size	8 MB
Access Lists	IPv4: 256, MAC: 256
Layer 3 Features	DHCP Server (Local Networks), DHCP Relay, Inter-VLAN Routing (Local Networks), Static Routing (Local Networks)
Layer 2 Features	LACP Port Aggregation, STP & RSTP, QoS (DSCP), Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron), Advanced IGMP Configuration (Querier, Fast Leave, Router Port), IGMP Snooping, 802.1X Control, MAC-Based ACLs & Device Isolation DHCP Snooping & Guarding, Egress Rate Limit, Flow Control, Storm Control, Multicast & Broadcast Rate Limiting, MAC Address Blocking, IP-Based ACLs & Network Isolation, MAC-Based Port Restriction, Port Isolation, Port Mirroring, Jumbo Frames, LLDP-MED, Voice VLAN, Loop Protection
PoE Ports	24 (PoE+++)
Max. PoE Wattage per Port by PSE	PoE: 15.4W, PoE+: 30W, PoE++: 60W, PoE+++: 90W
Max. Power Consumption	150W (Excluding PoE Output), 870W (Including PoE Output)
Power Method	(1) Universal input, 100—240V AC, 50/60 Hz, (1) USP RPS DC input
Power Input Method	AC input
Power Supply	AC/DC, internal, 870W
Supported Voltage Range	100—240V AC
Management	Ethernet, AR
Weight	Without mounting brackets: 7.9 kg (17.4 lb), With mounting brackets: 8 kg (17.6 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Supported Rack Depth	482.6 mm (19") four-post racks, Posts depths ranging from 600 to 1,066 mm (23.6-42”)
LCM Display	1.3" touchscreen
ESD Protection	Air: ± 30kV, contact: ± 20kV
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
Etherlighting™	Ethernet: Yes, SFP28: Yes
LEDs	RPS: Yes
NDAA Compliant	Yes
Certifications	CE, FCC, IC, Anatel
Application Requirements	UniFi Network Version 9.1.120 and later
