Omada ES210X-M2 8-Port 2.5GBASE-T Easy Managed Switch with 2 10GE SFP+ Slots

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Supported Platforms

Description

Description

Specifications

Resources

Package Contents

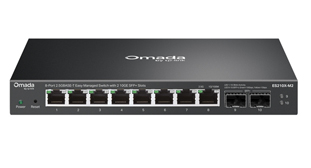

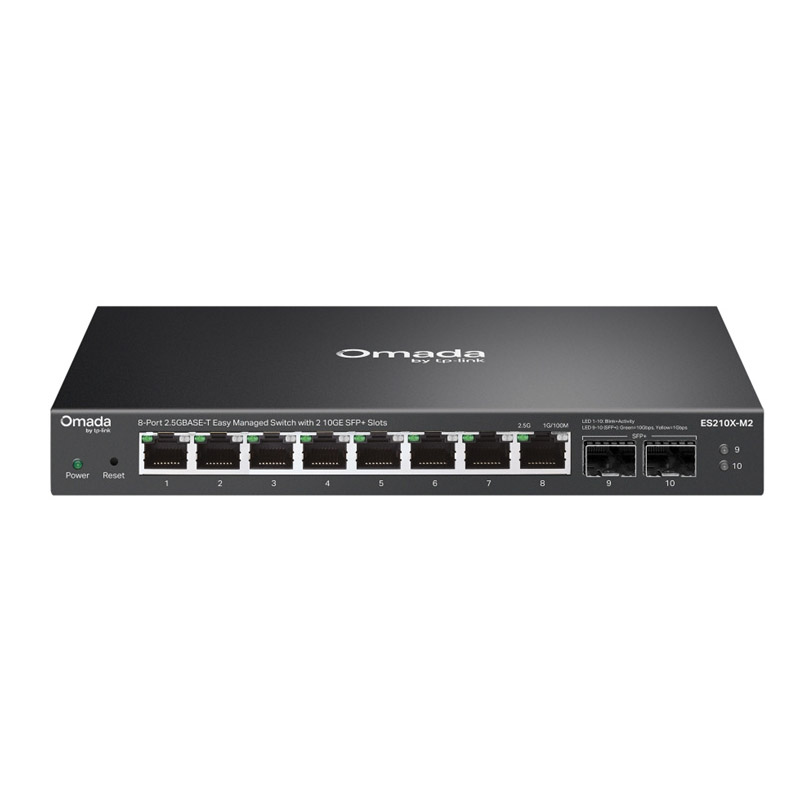

Omada ES210X-M2 8-Port 2.5GBASE-T Easy Managed Switch with 2 10GE SFP+ Slots.

Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface.

Reliable Connection with 10G Uplink

2× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, allowing for lightning-fast connections to servers and other switches.

Features

8× 2.5 Gbps RJ45 Ports
2× 10 Gbps SFP+ Slots
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app†
VLAN, Port Isolation, Cable Test△, QoS△ for reliable networking
Automatic Loop Prevention and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design

Details
Manufacturer's Code	ES210X-M2
Interface	8× 100 Mbps/1Gbps/2.5Gbps RJ45 Ports; 2× 10 Gbps SFP+ Slots
Flash	64 Mbit
Switching Capacity	80 Gbps
Packet Forwarding Rate	59.52 Mpps
MAC Address Table	16K
Packet Buffer	640 KB
Transmission Method	Store and Forward
Jumbo Frame	10 KB
Power Supply	AC/DC Adapter (Input: 100-240V AC; Output: 12VDC / 1.5A)
Standby Power Consumption	1.98 W (110V/60Hz)
Max Power Consumption	8.38 W (110V/60Hz)
Max Heat Dissipation	28.59 BTU/hr (110V/60Hz)
MTBF	1424624 h @ 25°C
Dimensions	209 × 126 × 26 mm
Net Weight	0.71 kg
Fan Quantity	Fanless
Installation	Desktop / Wall Mounting
Operating Temperature	-5 °C to 40 °C
Storage Temperature	-40 °C to 70 °C
Operation Humidity	10% to 90% RH, non-condensing
Storage Humidity	5% to 90% RH, non-condensing
Surge Protection	±6 kV in common mode for Ethernet ports; ±2 kV in differential mode for AC power input port
ESD Protection	Air: ±8 kV, Contact: ±4 kV
Certification	CE, FCC, RoHS
SDN Support	Support Hardware Controller; Software Controller; Cloud-Based Controller; Automatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Unified Configuration
Link Aggregation	Static Link Aggregation; Up to 6 aggregation groups and up to 4 ports per group
Loopback Detection	Yes
Flow Control	802.3x Flow Control
Mirroring	Port Mirroring; One-to-One; Many-to-One; Ingress/Egress/Both
Port Statistics	Port Mirror Status; Traffic Statistics
LLDP	802.1ab LLDP
IGMP Snooping	IGMP v1/v2/v3 Snooping; Fast Leave
VLAN	MTU VLAN; Port-Based VLAN; 802.1Q Tag VLAN; Max 32 VLAN Groups; 4K VID
QoS	802.1p DSCP Priority; 8 Priority Queues; Priority Schedule Mode; WRR (Weighted Round Robin); Queue Weight Config; Bandwidth Control; Port-Based Rating Limit; Storm Control; Multiple Control Modes (kbps/pps); Broadcast/Multicast/Unknown-Unicast Control
Management Features	Web-based GUI; DHCP Client; Cable Diagnostics
