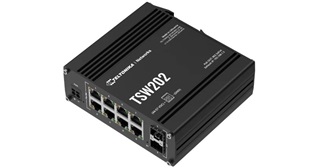

Teltonika TSW202 DIN Rail Mountable Managed PoE+ Switch 8 x 10/100/1000 Mbps ETH-ports PoE+ switch with 2 x SFP.

The TSW202 is the first-ever Teltonika Networks managed PoE+ switch, designed to provide granular network management capabilities while centralizing power distribution. This PoE+ switch enables flexibility over solution management and power supply and enhances M2M communication by supporting a wide range of industrial protocols, including EtherNet/IP, Profinet, and MRP. The TSW202 has 2 high-performance SFP ports for long-range fibre optic communication and 8 Gigabit Ethernet ports providing 30 W of power each.

Features

L2 with additional L3 features for enhanced management and control
8 x port PoE+ switch with 2 x SFP ports for fibre optic communication
Supports Profinet for automated data processing alongside other protocols, like EtherNet IP and MRP
Teltonika Networks OS for switches, intuitively designed for infinite configurations
Configure via RMS

Details
Product code	TSW202
Ethernet	Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
Fibre	2 x SFP ports
IEEE 802.3 series standards	802.3af, 802.3at, IEEE 802.1p, IEEE 802.1Q, 802.3az
PoE ports	Port 1 - 8
PoE standards	802.3af and 802.3at
PoE Max Power per Port (at PSE)	30 W
Total PoE Power Budget (at PSE)	240 W (DC input of 44 – 57 VDC required for PoE)
Maximum Ethernet cable length	100 m
Services	EtherNet/IP, Profinet (class B), SNMP V2, V3, LLDP
MRP	MRP client role, MRP manager role
L2 features	Loop protection, Forwarding table, VLAN, STP/RSTP
DHCP	DHCP server, DHCP client
Port Settings	Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring
L3 Features	Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address
QOS	Port priority, DSCP priority, 802.1p priority, TOS
Scheduling method	SP/WFQ/WRR
Bandwidth control	Rate limiting, storm control
RAM	128MB, DDR3
FLASH storage	16 MB serial flash
Bandwidth (Non-blocking)	20 Gbps
Packet buffer	512 KB
MAC address table size	8K entries
Jumbo frame support	10000 bytes
Power Connector	2-pin industrial DC power socket
Input voltage range	7 – 57 VDC (Power Supply not Included)
PoE-out input voltage range	44 – 57 VDC
Power consumption	Idle: 3 W, Max: 8 W; PoE Max: 248 W
Status LEDs	1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
Reset	Software reset button
Casing material	Anodized aluminum housing and panels
Dimensions (W x H x D)	132 x 44.2 x 122.2 mm
Weight	610 g
Mounting options	Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement
Operating temperature	-40 °C to 75 °C
Operating humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30
Regulatory	CE, CB, RCM, FCC, IC, EAC, UCRF
