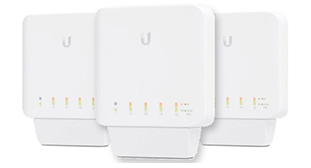

The Ubiquiti UniFi Switch Flex 5-Port managed PoE switch 3 Pack with (1) 802.3at/bt (PoE+/PoE++) input port and (4) 802.3af (PoE) Gigabit Ethernet ports.
Build and expand your network with the UniFi® Switch, part of the UniFi Enterprise System. The UniFi Switch, model USW-Flex, is a configurable Layer 2 Gigabit switch with auto-sensing 802.3af PoE. It offers 5 RJ45 Gigabit Ethernet ports, providing 1 PoE input and 4 PoE output links to your devices.
The UniFi Switch Flex features a single PoE In port for power and four PoE ports that provide up to 15W PoE output to power a UniFi access point or other PoE devices. With 802.3bt rated PoE switches (USW-Pro-48-PoE, USW-Pro-24-PoE, US-XG-6POE, and USW-Industrial switches, sold separately) as power source, USW-Flex supports a maximum 46W PoE output budget. It has a weatherproof housing and offers versatile mounting options.
Managed and configured by the UniFi Controller or UniFi Mobile app, the UniFi Switch Flex offers basic Layer 2 switching protocols and features. The UniFi Controller and mobile app allow admins to configure and monitor virtually all of the switch features using a graphical user interface from anywhere.
Build and expand your network with the UniFi® Switch, part of the UniFi Enterprise System. The UniFi Switch, model USW-Flex, is a configurable Layer 2 Gigabit switch with auto-sensing 802.3af PoE. It offers 5 RJ45 Gigabit Ethernet ports, providing 1 PoE input and 4 PoE output links to your devices.
The UniFi Switch Flex features a single PoE In port for power and four PoE ports that provide up to 15W PoE output to power a UniFi access point or other PoE devices. With 802.3bt rated PoE switches (USW-Pro-48-PoE, USW-Pro-24-PoE, US-XG-6POE, and USW-Industrial switches, sold separately) as power source, USW-Flex supports a maximum 46W PoE output budget. It has a weatherproof housing and offers versatile mounting options.
Managed and configured by the UniFi Controller or UniFi Mobile app, the UniFi Switch Flex offers basic Layer 2 switching protocols and features. The UniFi Controller and mobile app allow admins to configure and monitor virtually all of the switch features using a graphical user interface from anywhere.
Features
- Cost Effective 3 Pack
- Auto-Sensing IEEE 802.3af PoE Ports
- Lightweight, Weatherproof Housing
- Indoor/Outdoor Design with Versatile Mounts
| Details | |
|---|---|
| Manufacturer's Code | USW-Flex-3 |
| Dimensions | 122.5 x 107.1 x 28.0 mm |
| Weight | 230 g |
| Networking Interfaces | (5) 10/100/1000 Mbps RJ45 Ports |
| Management Interface | Ethernet In-Band |
| Power Method (Port 1) | PoE Mode 1: 802.3af/at (Pins 1, 2+; 3, 6-), PoE Mode 2: 802.3bt (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-), PoE Mode 3: 50V/60W PoE Adapter (See Data sheet for more details) |
| PoE Out (Ports 2-5) | 802.3af (Pins 1, 2+; 3, 6-) |
| Max Power Consumption | 5W (Excluding PoE Output) |
| Max PoE Wattage Per Port | 15.4W |
| Total PoE Power Budget | Powered by AF mode PSE: 8W, Powered by AT mode PSE: 20W, Powered by BT mode PSE: 46W, Powered by PoE Adapter:46W (Enabled in Controller) |
| Voltage Range | 802.3af: 44 - 57V, 802.3at/bt: 50 - 57V |
| LEDs | System Status, RJ45 Data Ports PoE; Link/Speed/Activity |
| ESD/EMP Protection | ± 16kV Air, ± 16kV Contact |
| Operating Temperature | 46W PoE Output: -40 to 55° C (-40 to 131° F), 25W PoE Output: -40 to 65° C (-40 to 149° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Details | |
|---|---|
| Power Supply | Not Included, recommend: US-8-150W, USW-Industrial, POE-50-60W |
RJ45
PoE (802.3af/at)
