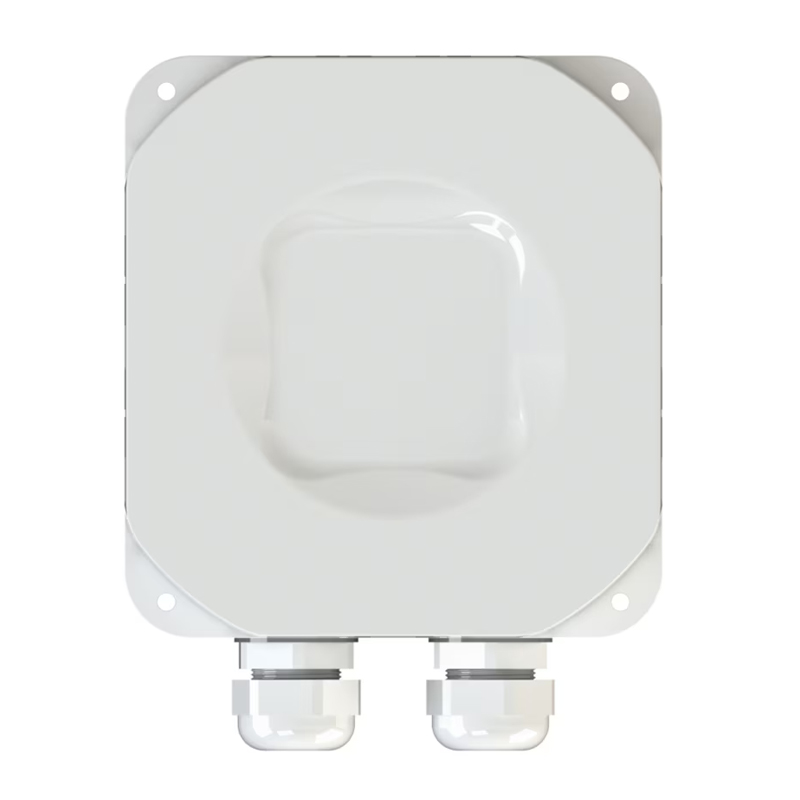

Tachyon Networks TNA-303X 60 GHz Modular Outdoor AP/Client is a full-band 60GHz radio with an innovative modular design. The base unit features 90° of beam-forming coverage and can be paired with an antenna kit (sold separately) to convert the radio from a wide beam-steering device to a highly directional one.

Fiber-like speeds using the 60GHz band

2+ Gbps can be achieved and distances of up to 2+ km (antenna kit dependent) without trenching, permits, or licenses.

Upper-band support

All models support the full 60GHz band, including channels 5 and 6 (57-71 GHz), enabling longer links and increased co-location opportunities.

Modular design simplifies inventory and installation

The Tachyon Networks TNA-303X features a modular design. The base unit features 90º of beam-forming coverage and can be paired with an antenna kit (sold separately) to convert the radio from a wide beam-steering device to a highly directional one.

Best overall affordability

The low cost of the TNA-300 series product family, combined with high subscriber density and quick installation, greatly decreases total cost of ownership for service providers.

Features

Compatible modular antennas: TNA-AK-S-45, TNA-AK-S-90, TNA-AK-100, TNA-AK-150, TNA-AK-300
60GHz PTP+PTMP AP/Client
Base Antenna Beamforming range: 90° x 50°
Operating mode options: Access Point/Station (software controllable)
Channels 1-6 (57-71GHz)
2.3 Gbps+ aggregate throughput
Connect up to 32 clients
Supports 48V Passive PoE Output on Secondary Port (requires a 48V 1A or similar spec PoE adapter)
Works with 802.3at/bt compliant PoE sources such as the Procet EN60GB-10 and PT-PSE104GB-60-10

Details
Manufacturer's Code	TNA-303X-AU
Beam-forming range with base antenna	90º x 50º
Max EIRP (Country dependent)	38dBm
Operating modes	Station, Access Point (software configurable).
Max STA count per AP	Up to 32 stations
Max EIRP (base)	38dBm depending on local regulations
Link encryption	AES 256 + GCMP
Frequency & supported channels	Full band: 57-71 GHz: channels: 1-6, Half channels: 1-11 (see notes on support site about half channel support)
Channel size options	Full (2 GHz), half (1 GHz) (see notes on support site about half channel support)
Station scheduling	TDMA: dynamic scheduling mechanism
TNA-303X Base Antenna	16 dBi 3D beamforming phased array with +/- 45° azimuth (90° total) and +/- 25° elevation (50° total). Beam size is: 30° azimuth x 30° elevation. Single linear polarization.
Duplexing	TDD
Max MTU size	7900 b
Networking mode	Transparent bridge
VLAN capabilities	Data VLAN (in station mode) & management VLAN
Other features	Traffic shaping (station mode), DHCP snooping, device discovery, speedtest, and more
IPv4/IPv6 support	Both are supported
Management	Web interface, SNMP v2 & v3, SNMP traps, & RESTful API (SSH available upon request)
Interfaces	1 x 2.5G ethernet, 1 x 1G ethernet
Mount	Pole or wall mountable via mounting backplate
PoE input power	Active PoE 38-57VDC (passive injector included)
Output power	On 1G port: passive PoE out w/max 0.5A (requires a high power injector, sold separately)
Max power consumption	17W w/o PoE out in use, and 41W with it in use
Operating temperature	-30°C - 55°C
Base Unit dimensions & weight	Height: 13cm, Width: 12 cm, Depth: 5.5cm, 425 g
LEDs	Ethernet link status, wireless status, signal level, & power
