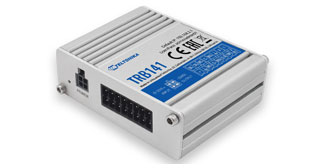

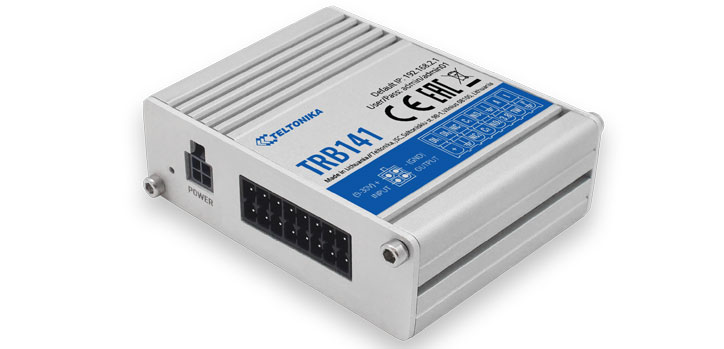

The Teltonika TRB141 is a small Industrial 4G/LTE Cat 1 Cellular Gateway in a case and is equipped with multiple Inputs/Outputs and MicroUSB port. Compact design makes this Gateway perfect for applications where devices must be remotely managed using I/O’s.
This Industrial LTE Cat 1 Gateway is equipped with several Input & Output options including Digital, Relay, Analog and Isolated. Paired with secure and functional RutOS, plenty of processing power and Teltonika Remote Management System this device offers unprecedented application flexibility to manage and control equipment remotely over LTE. TRB141 is engineered to be used in Industrial IoT applications therefore it has a wide range of software features such as SMS control, Firewall and FOTA support.
This Industrial LTE Cat 1 Gateway is equipped with several Input & Output options including Digital, Relay, Analog and Isolated. Paired with secure and functional RutOS, plenty of processing power and Teltonika Remote Management System this device offers unprecedented application flexibility to manage and control equipment remotely over LTE. TRB141 is engineered to be used in Industrial IoT applications therefore it has a wide range of software features such as SMS control, Firewall and FOTA support.
Features
- Multiple Inputs/Outputs for remote monitoring and control
- 9-30V Wide range of power supply voltages
- LTE Cat 1 for M2M/IoT communications
- Teltonika Remote Management System compatible
- Compact size, easy integration
- Easy to use, secure and feature rich OpenWrt based Operating System
- Perfect modem for 2G/3G shutdown upgrade projects
| Details | |
|---|---|
| Product code | TRB141101000 |
| Mobile | 4G/LTE(Cat1)/3G/2G |
| Supported Bands | 4G (LTE-FDD): B1, B2, B3, B4, B5, B7, B8, B28; 4G (LTE-TDD): B40; 3G: B1, B2, B5, B8; 2G: B2, B3, B5, B8 |
| SIM slot | Mini SIM (2FF) |
| Antenna connector | 1 x SMA for LTE |
| Inputs/Outputs | 2 x Digital inputs, 2 x Relay outputs, 1 x Analog input, 1 x Isolated input, 2 x Digital Inputs/Outputs on power connector |
| CPU | ARM Cortex-A7 1.2 GHz CPU |
| RAM | 128 MBytes (50 Mbytes available for userspace) |
| Flash | 512 MBytes (70 Mbytes available for userspace) |
| Input voltage range | 9 - 30 VDC |
| Power connector | 4 pin industrial DC power socket |
| Power consumption | Less than 5 Watts |
| Configuration interface | Virtual NIC via Micro-USB connector |
| LED Indicators | Power, signal, network and data status LEDs |
| Operating temperature | -40° C to 75° C |
| Dimensions | 60 mm x 70 mm x 18 mm |
| Operating system | Linux OS with Yocto SDK (offering high software customisation) |
| Network | NAT, Firewall (port forward, traffic rules, custom rules), DDNS ( >25 service providers supported) |
| Remote management | RMS Support, FOTA support, SSH, CLI, SMS Utilities (status/configuration) |
| Status watchdogs | Ping reboot, periodic reboot |
| Additional features | Internet connectivity over USB virtual network interface |
| Details | |
|---|---|
| Power Supply | 9V 1A AC/DC Plug Pack with 4pin, 3mm pitch connector |
| Antenna | 1 x LTE antenna (magnetic mount, SMA male, 3 m cable) |
| Cables | Micro-USB cable (0.8 m), LAN cable |
| Connectors | I/O connector |
| Manual | QSG (Quick Start Guide) |
