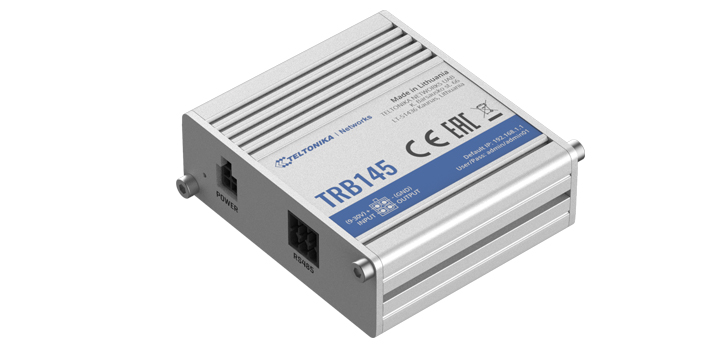

Teltonika TRB145 Industrial RS485 to 4G/LTE IoT Cellular Gateway. The Teltonika Industrial LTE Cat 1 Gateway Board TRB145 is equipped with RS485 Interface, Digital Inputs/Outputs and micro-USB port. TRB145 compact design makes this Gateway perfect for an application where a sole gadget must be remotely controlled over RS485 interface. The TRB145 is engineered to be used in Industrial applications therefore it has a wide range of software features such as SMS control, Firewall, Open VPN, IPsec, RMS and FOTA support.
Lightweight and powerful RS485 to 4G LTE Cat1 IoT gateway. High performance paired with Linux based firmware enables quick time-to-market in the most demanding applications.
Lightweight and powerful RS485 to 4G LTE Cat1 IoT gateway. High performance paired with Linux based firmware enables quick time-to-market in the most demanding applications.
Features
- RS485 for industrial differential serial communication
- Wide range of power supply voltages 9 – 30V
- LTE Cat 1 for M2M/IoT communications
- Teltonika Remote Management System compatible
- Compact size, easy integration
- OpenLinux based OS allows high software customisation
- Perfect modem for 2G/3G shutdown upgrade projects
| Details | |
|---|---|
| Product code | TRB145101000 |
| Mobile | LTE(Cat1)/3G/2G |
| SIM slot | Mini SIM (2FF) |
| Antenna connector | 1 x SMA for LTE |
| RS485 | Full Duplex (4 wires) and Half Duplex (2 wires), baud rate 300-115200 |
| Input/Output | 2 x Digital Input/Output (configurable) |
| CPU | ARM Cortex-A7 1.2 GHz CPU |
| RAM | 128 MB (50 MB available for userspace) |
| Flash | 512 MB (70 MB available for userspace) |
| Input voltage range | 9 - 30 VDC |
| Power connector | 4 pin industrial DC power socket |
| Optional power source | Possibility to power device over 6 pin RS485 connector’s spare terminals. |
| Configuration interface | Virtual NIC via Micro-USB connector |
| LED Indicators | Power, signal, network and data status LEDs |
| Operating System | Linux OS with Yocto SDK (offering high software customisation) |
| Network | NAT, Static/Dynamic routing, Firewall (port forward, traffic rules, custom rules), OpenVPN, DDNS ( >25 service providers supported) |
| RS485 related services | Modbus, Serial over IP, NTRIP |
| Remote management | RMS Support, FOTA support, SSH, CLI, SMS Utilities (status/configuration) |
| Status watchdogs | Ping reboot, periodic reboot |
| Additional features | Internet connectivity over USB virtual network interface |
| Operating temperature | -40° C to 75° C |
| Storage temperature | -45° C to 80° C |
| Operating humidity | 10% to 90% non-condensing |
| Storage humidity | 5% to 95% non-condensing |
| Dimensions | 60 mm x 70 mm x 18 mm |
| Weight | 29.8 g |
| Details | |
|---|---|
| Power Supply | 9V 1A AC/DC Plug Pack with 4pin, 3mm pitch connector |
| Antenna | 1 x LTE antenna (magnetic mount, SMA male, 3 m cable) |
| Accessories | Micro-USB cable (0.8 m), RS485 connector |
| Manual | QSG (Quick Start Guide) |
Teltonika RMS
4G
USB
600-999MHz , 1700-2100MHz
