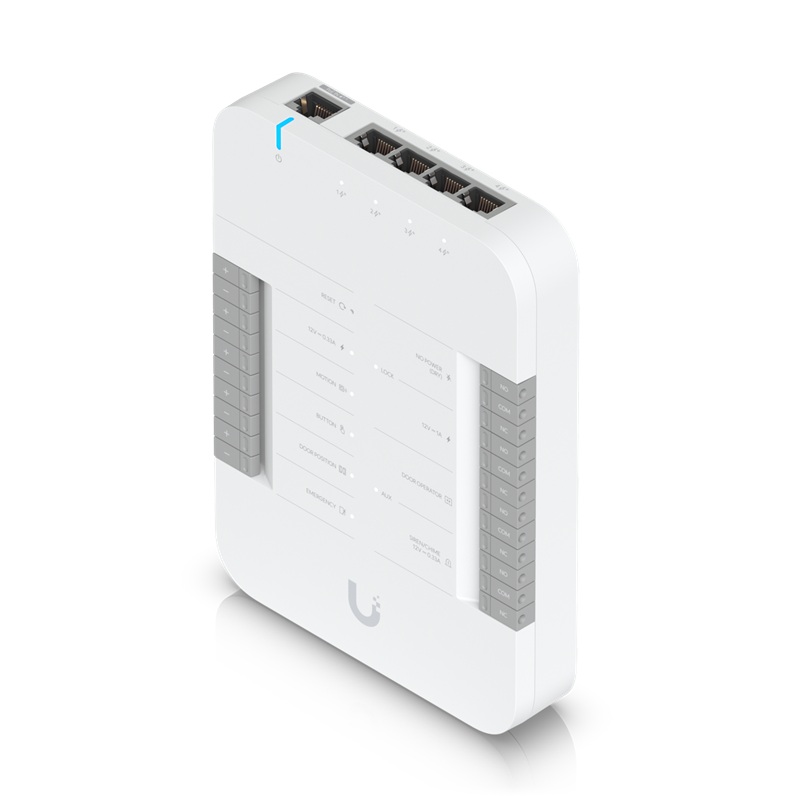

The Ubiquiti UniFi Access Door Hub is a single-door mechanism that provides complete entry and exit control via connected Access Readers.
The UniFi Access Door Hub comes with versatile interfaces, including support for most electric bolts/strikes, magnetic locks, and 12V access accessories such as motion sensors, push buttons, and alarms. The three Ethernet PoE powered reader interfaces minimize need for wiring work and offer a convenient way to add a UniFi G3-Flex surveillance camera for additional security. The seamlessly integrated UniFi Access solution is managed with UniFi Access Controller software. Easily manage users, visitors, schedules, and access policies with the with the intuitive browser-based interface.
The UniFi Access Door Hub comes with versatile interfaces, including support for most electric bolts/strikes, magnetic locks, and 12V access accessories such as motion sensors, push buttons, and alarms. The three Ethernet PoE powered reader interfaces minimize need for wiring work and offer a convenient way to add a UniFi G3-Flex surveillance camera for additional security. The seamlessly integrated UniFi Access solution is managed with UniFi Access Controller software. Easily manage users, visitors, schedules, and access policies with the with the intuitive browser-based interface.
Features
- Powered by 802.3bt (PoE++) switch
- Four 802.3af PoE ports for UniFi readers and G3 Flex surveillance camera
- 12V powered and dry relays compatible with most locks
- Four inputs for motion sensors, request-to-exit devices and door position switch
- Managed with UniFi Access Controller
- DIN-rail mounting
- Note: A compatible UniFi Console is required to run UniFi Access
| Details | |
|---|---|
| Manufacturer's Code | UA-Hub-Door |
| Dimensions | 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3") |
| UniFi Application Suite | Access |
| Supported Doors | 1 |
| Maximum User Count | 6,000 |
| Input Terminals | (2) Door exit request, (1) Door position, (1) Emergency |
| Power Method | PoE++, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU |
| NDAA Compliant | Yes |
| UL 294 Level | Destructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I |
| Weight | 363 g (12.8 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Mounting | DIN-rail (Included) |
| Digital Input | Request to exit, request to enter, remote release, door position sensor |
| Dry Output Relay | Lock: 30V DC, 1A, Aux: 30V DC, 1A |
| Powered Output Relay | Lock: 12V DC, 1A, Aux: 12V DC, 0.33A, 12V DC, 0.33A |
| Indoor and Outdoor Use | Indoor only |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Networking Interface | (5) 10/100/1000 Base-T |
| PoE Interface | (1) PoE++ input, 50V DC, 1A, (4) PoE outputs, 50V DC, 30W per port (Max 45W aggregated) |
| Max. Power Consumption | 30W (Without PoE output), 50W (With PoE output) |
| LEDs | W/B Learn More |
| Buttons | (1) Factory-reset |
| CAN/ULC-60839-11-1 Grade | Grade assignment: 1 |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Details | |
|---|---|
| Power Supply | Not Included |
| Mounting | DIN Rail and Screws included |
UniFi
RJ45
PoE (802.3af/at) , POE (802.3bt)
