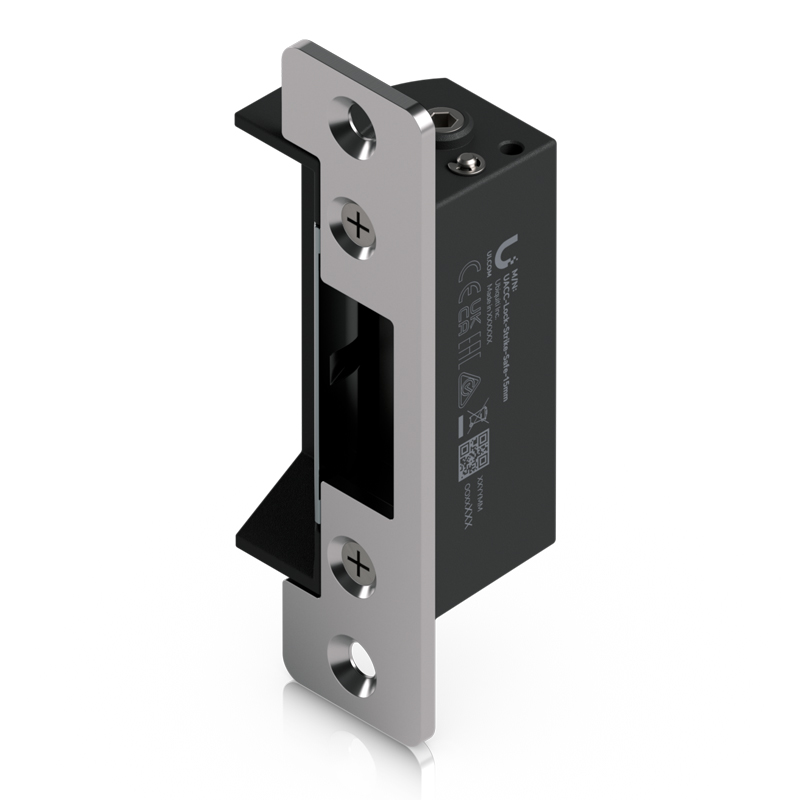

The Ubiquiti UniFi Access Fail-safe Strike Lock is an Fail-safe electric strike lock that connects to a UniFi Access Hub.
Features
- Compatibility: UA-Hub-Door, EAH-8, UA-Hub-Door-Mini, UA-Ultra, UA-Hub-Gate
- Holds up to 1,200 kg
- Can be installed on an aluminum, steel, or wooden door frame
- ANSI-compliant design
| Details | |
|---|---|
| Manufacturer's Code | UACC-Lock-Strike-Safe-15mm |
| Dimensions | Lock body: 80 x 40 x 35 mm (3.2 x 1.6 x 1.4"), Short front plate: 124 x 32 x 3 mm (4.9 x 1.3 x 0.1"), Long front plate: 202 x 36 x 3 mm (7.9 x 1.4 x 0.1") |
| Weight | Lock body: 185 g (6.5 oz), Short front plate: 50 g (1.8 oz), Long front plate: 130 g (4.6 oz) |
| Enclosure Material | Lock body: zinc alloy, Front plate/latches: stainless steel |
| Lock Type | Fail safe |
| Support Door Type | Single door (Wooden/metal) |
| Holding Force | 1,200 kg (2,645 lb) |
| Current Power | 400mA ±10% |
| Support Voltage Range | 12V DC ±10% |
| Wiring | (1) Lock 12V/NC (red), (1) Lock 12V/COM (black) |
| Mounting | Door frame recess mount |
| Door Status Contact Type | Dry contact |
| Logic | Door Open: DPS/+ & DPS/- = Open, Door Close: DPS/+ & DPS/- = Short |
| Rating | Max. 30V DC, 0.1A |
| Ambient Storage Temperature | -20 to 70° C (-4 to 158° F) |
| Ambient Operating Temperature | -10 to 60° C (14 to 140° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE |
| Details | |
|---|---|
| Included | Door Mount and screws |
