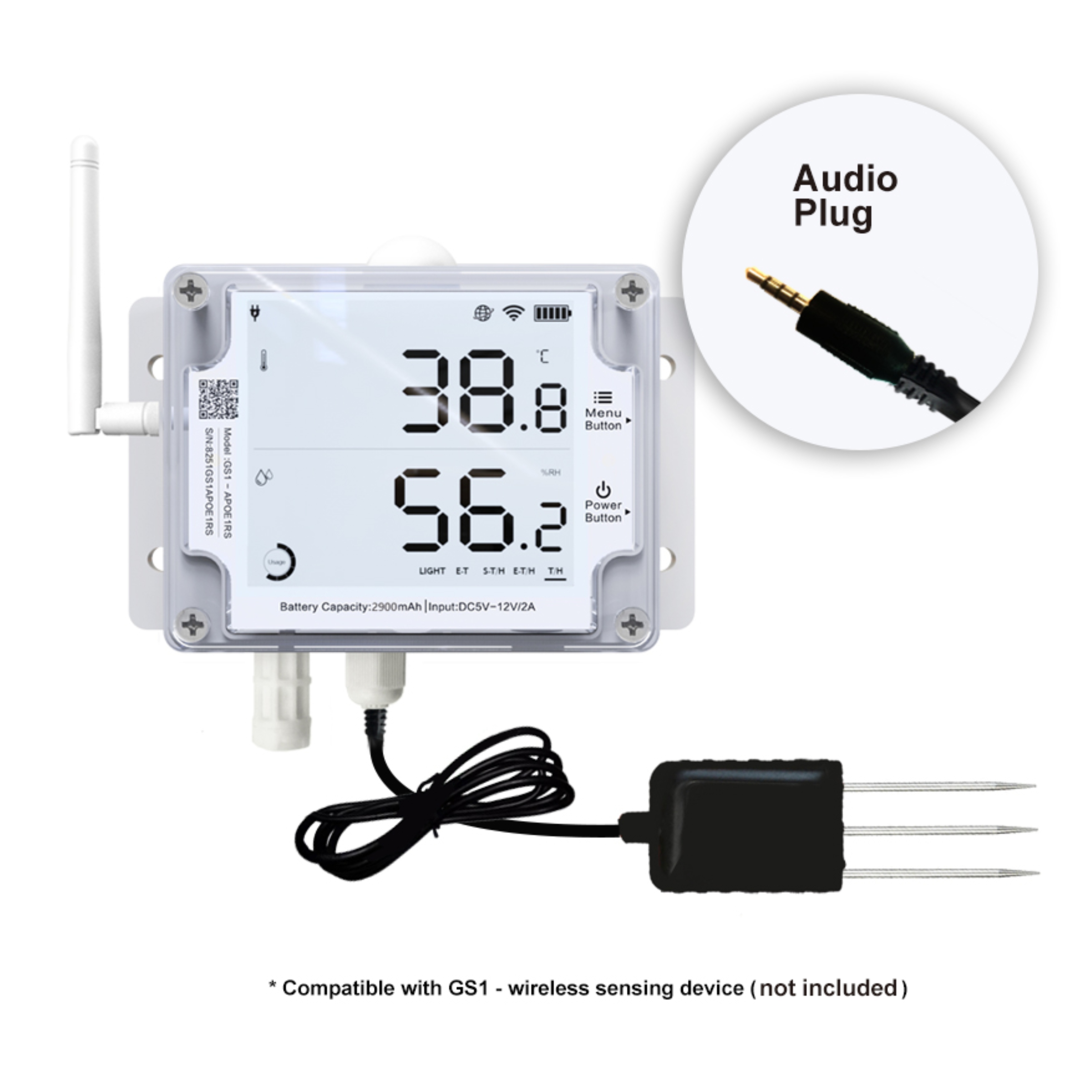

Ubibot Soil-Probe-3M-R-USB Soil Temperature and Moisture Probe for WS1 Pro 3 Metres. This product adopts modbus-rtu protocol, and the computer can monitor the temperature through the communication mode of RS485 interface. Cooperate with WS1 Pro and GS1 series product to monitor the data on computer platform or mobile APP, and generate soil moisture and temperature report through the platform. The soil temperature and moisture sensor measures soil moisture content based on frequency domain reflection method. We think of the soil as a capacitance containing a medium, according to transmission line theory, the circuit due to the load impedance mismatch appear under a certain frequency resonant migration, reflection amplitude value is not the same at the same time, through comparing the difference of reflection wave and the incident wave amplitude value, measure the capacitance of the multiple reflection wave caused by the changes, and then measure the soil moisture content. The probe shell is made of ABS, which has good resistance to acid and alkali corrosion. The shell is completely wrapped and can reach the IP68 waterproof level, which means that the probe can be continuously measured in water.
It is widely used in homes, offices, farms and other places where soil temperature and moistureneedtobe measured.
1. All communication circuits shall follow the master/slave mode. In this way, data can be transferred between one primary station (e.g., PC) and multiple sub-stations. Any communication cannot start from a slave. 2. The information transmission mode is asynchronous, byte format is 1 start bit, 8 data bits, and 1 stop bit, no check. 3. Compliance with MODUBS RTU protocol standards. 4. The default baud rate is 9600 and the address is 0xC2.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
It is widely used in homes, offices, farms and other places where soil temperature and moistureneedtobe measured.
1. All communication circuits shall follow the master/slave mode. In this way, data can be transferred between one primary station (e.g., PC) and multiple sub-stations. Any communication cannot start from a slave. 2. The information transmission mode is asynchronous, byte format is 1 start bit, 8 data bits, and 1 stop bit, no check. 3. Compliance with MODUBS RTU protocol standards. 4. The default baud rate is 9600 and the address is 0xC2.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
Features
- 1. RS485 Interface.
- 2. High precision, wide range, good consistency.
- 3. Super stability and anti-interference.
- 4. Wide voltage input，DC5-12V.
- 5. Standard MODBUS RTU protocol.
- 6. Cooperate with WS1 Pro and GS1 to achieve remote monitoring, report generation and other functions.
| Details | |
|---|---|
| Model | Soil-Probe-3M-R-USB |
| Working Voltage | DC5V~DC12V |
| Output Interface | Micro USB |
| Communication Methods | RS485 |
| Communication Protocol | MODBUS RTU |
| Communication Address | 1-255 (can be customized) |
| Baud Rate | 300 bit/s,600 bit/s, 1200 bit/s, 2400 bit/s, 4800 bit/s, 9600 bit/s, 19200bit/s,38400bit/s,43000 bit/s, 56000 bit/s, 57600 bit/s,115200 bit/s (can be customized） |
| Standby Current | ≤20mA |
| Measuring Range | 0 - 100% |
| Measuring Accuracy | ±3% (0-50%) ±5%(50%) |
| Measuring Theory | Frequency Domain (FDR) |
| Measuring Range | - 40degC - 85degC |
| Measuring Accuracy | ±0.4degC |
| Probe Length | 50mm |
| Probe Diameter | 3.5 |
| Lead Length | 3meters |
| Details | |
|---|---|
| Contains | 1 x Soil-Probe-3M-R-USB |
