Ubiquiti UniFi Device Bridge 8 Port Multigigabit PoE+ Switch with Wi-Fi 7 Connectivity

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Supported Platforms

Description

Description

Specifications

Resources

Package Contents

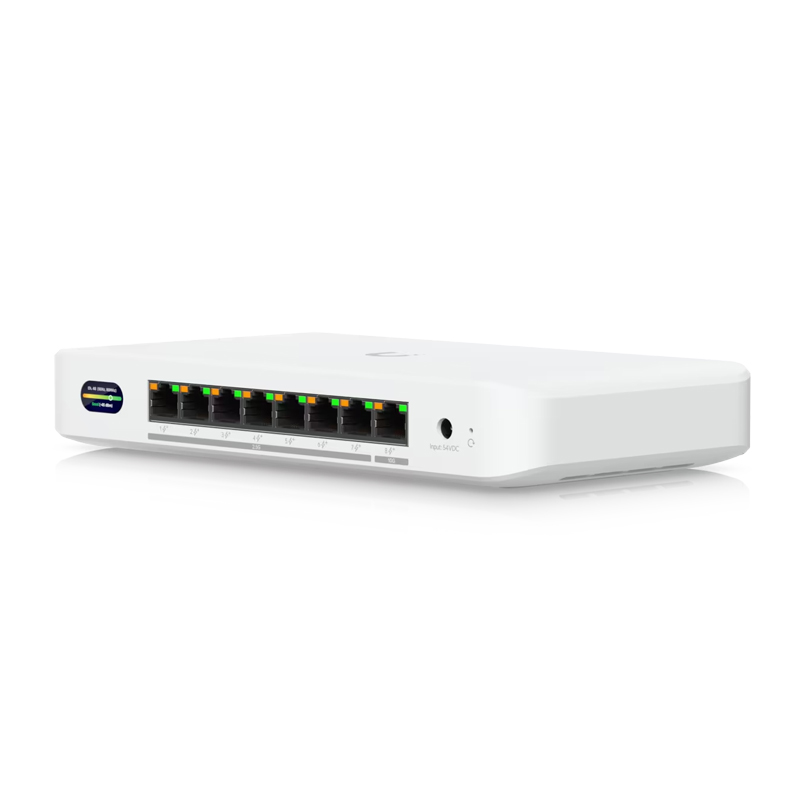

The Ubiquiti UniFi Device Bridge Switch is a Compact PoE+ switch with (1) 10 GbE port, (7) 2.5 GbE ports, and 6 GHz-ready WiFi 7 bridging integrated for seamless, high-capacity wireless uplink to UniFi WiFi networks.

The Device Bridge Switch provides 35W of PoE power with the included 60W adapter, or up to 185W with the optional 210W adapter.

Achieve multi-gigabit throughput and near-zero latency over the air, delivering wired-grade reliability without the cost or complexity of installing cable or fibre. No complex setup—just plug in and enjoy reliable point-to-point connectivity.

Features

60W adapter Included
Up to 5.8 Gbps WiFi7 throughput
UniFi's Auto-Link Technology
Multigigabit Ethernet connectivity

Details
Manufacturer's Code	UDB-Switch-AU
WiFi Standard	WiFi 7 802.11be, 802.11ax, 802.11ac, 802.11n, 802.11a
Operating Frequency	Worldwide: 5150—5875 MHz, 5945—7125 MHz
Spatial Streams	4
MIMO	6 GHz: 2 x 2, 5 GHz:2 x 2
Max. Data Rate	6 GHz: 5.8 Gbps (BW320), 5 GHz: 4.3 Gbps (BW240)
Antenna Gain	6 GHz: 8 dBi, 5 GHz: 8 dBi
Max. TX Power	6 GHz: 23 dBm, 5 GHz: 26 dBm
Max. Conducted TX Power	26 dBm (Combined)
Max. Power Consumption	25W (Excluding PoE output)
Supported Voltage Range	42.5–57V DC
Networking Interface	(1) 10 GbE RJ45 port, (7) 2.5 GbE RJ45 ports
PoE Interface	(8) PoE+ ports
Max. PoE Wattage per Port	30W
Total PoE Availability	60W AC adapter input: 35W, optional 210W AC adapter input: 185W
Antennas	(1) Internal
Management	Ethernet, WiFi
Channel Bandwidth	20/40/80/160/240/320 MHz
Weight	Device: 548 g (1.21 lb), With mount: 563 g (1.24 lb)
Enclosure Material	Polycarbonate
Mount Material	Polycarbonate
LCM Display	0.96" status display
Button	(1) Factory reset
NDAA Compliant	Yes
Ambient Operating Temperature	-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity	5 to 95% noncondensing
Software Application Requirements	UniFi Network Version 10.0.156 or later.
Dimensions	212.9 x 113 x 32.5 mm (8.4 x 4.4 x 1.3")
Mounting Locations	Desktop, wall
Power Method	DC jack (54V DC/1.1A)
Power Supply	54V DC/1.1A (Adapter included)
Certifications	CE, FCC, IC
