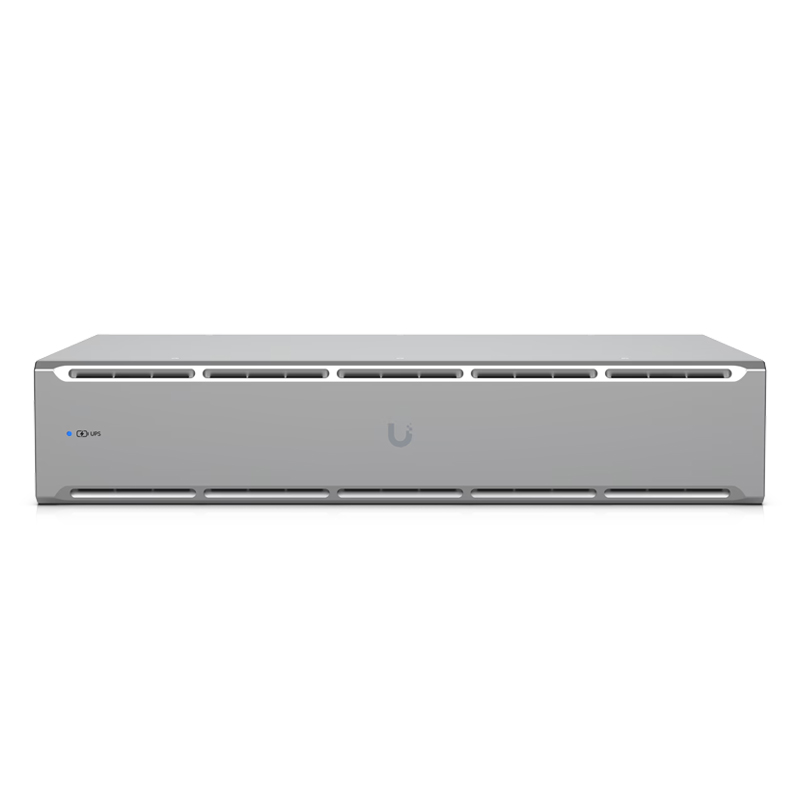

Ubiquiti UniFi 1500VA 2U Line interactive UPS with Surge protection

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Supported Platforms

Description

Description

Specifications

Resources

Package Contents

Ubiquiti UniFi 1500VA 2U Line interactive UPS with Surge protection, UniFi managed rackmount uninterruptible power supply with 8 outlets and field replaceable battery, 216Wh, half load (500W) runtime of 8 minutes, UniFi Alarm Manager ready and NUT support for 3rd party devices.

Like all UniFi products, these UPS appliances integrate seamlessly into the UniFi Network application for simple adoption and monitoring. Built-in NUT server capability extending safe shutdown support to third-party servers as well.

Features

Seamlessly Integrate to UniFi Network
NUT Support for 3rd Party Devices

Details
Manufacturer's Code	UPS-2U-EU
Management	Ethernet
Networking Interface	(1) 100/10 MbE port for network connection, (2) GbE ports for surge in/out
Power	(1) OVC II AC in: C14 socket, 1.8 m (5.9 ft) removable power cord, (4) Battery backup/surge protection: C13, (4) Surge protection: C13
Capacity	1,500VA/1,000W
Type	Line interactive
Input Voltage Range	170–280V AC
Power Method	(1) TN system, 220–240V AC, 10A Max., 50/60 Hz
Nominal Input Voltage	230V AC
Output Voltage	220–240V AC
Nominal Output Voltage	230V AC
Frequency Range	AC mode: 50/60 Hz ±5 Hz (Auto sensing), Battery mode: 50 Hz ±1 Hz
AC Voltage Regulation	±10% (Battery mode)
Transfer Time	6 ms typical; 10 ms max. (Battery mode)
Wave Form	Simulated sine wave (Battery mode)
Battery Type	(2) Lead Acid 12V, 9Ah
Runtime	Full load: 2.3 min, Half load: 8 min
Battery Charging Time	6-8 hours recovery to 90% capacity
Overload at On-Line Mode	110% 5 min go to fault, 120% go to fault immediately
Overload at Battery Mode	110% shutdown in 5 sec, 120% shutdown immediately
Short Circuit Protection at On-Line Mode	Breaker, 250V AC, 10A
Output Short-Circuit Current	Ipeak 444.0A, Irms 223.1A
Buttons	(1) Power, (1) Factory reset
LEDs Status	Off: device not turned on, Flashing white: initializing / factory default, Steady white: waiting for adoption, Steady blue: device adoption and working, Flashing blue: battery mode, Alternating white/blue: firmware upgrading, Rapid flashing blue: locate, Steady red: warning, Flashing red: low battery
Operating Altitude	3,000 m (1.9 mi)
Operating Environment	Pollution Degree 2
Ambient Storage Temperature	-20 to 50° C (-4 to 122° F)
Ambient Operating Temperature	0 to 40° C (32 to 104° F)
Ambient Operating Humidity	0 to 95% noncondensing
Dimensions	442.4 x 300 x 87.4 mm (17.4 x 11.8 x 3.4")
Weight	13.7 kg (30.2 lb)
Enclosure Material	Galvanized steel
Form Factor	Rack mount (2U)
Weatherproofing	IP20
Certifications	CE, IEC 62040-1
