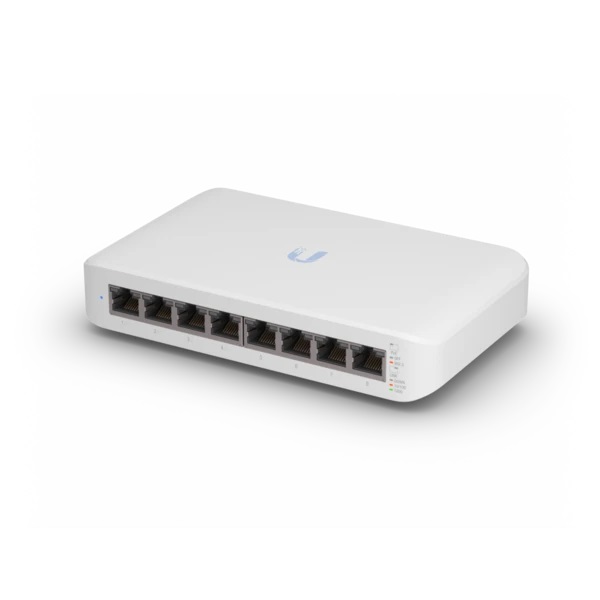

The Ubiquiti UniFi Switch Lite 8 PoE (USW-Lite-8-PoE) is a fully managed Layer 2 switch with eight Gigabit Ethernet ports for your RJ45 Ethernet devices. Four ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 52W for UniFi Access Points or other PoE devices.

Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-Lite-8-PoE offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Features

(8) Gigabit RJ45 ports including (4) 802.3af/at PoE+ ports
Managed by UniFi Controller (5.13.10 or later)
External 60W power adapter included
Wall-mountable (Kit included)

Details
Manufacturer's Code	USW-Lite-8-POE
Total Non-Blocking Line Rate	8 Gbps
Max. Power Consumption	8W
Power Method	54VDC, 1.1A Power Adapter
Power Supply	External 54V/60W Power Adapter
Supported Voltage Range	DC 50V to 57V
Networking Interfaces	(8) 10/100/1000 Mbps Ethernet RJ45 Ports
PoE Interfaces	(4) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Mangement Interface	Ethernet In-Band
Max. PoE+ Wattage per Port by PSE	30W
Total Switch PoE Budget	52W
Modes	SMB Layer 2 PoE Gigabit Ethernet Switch
Operating Temperature	-15 to 40° C (5 to 104° F)
Operating Humidity	10 - 90% Noncondensing
Certifications	CE, FCC, IC
LEDS	System, Ethernet & PoE
Dimensions	99.6 x 163.7 x 31.7 mm
Weight	450 g
