Ubiquiti UniFi UVC G6 Entry Intelligent Door Entry System

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Supported Platforms

Description

Description

Specifications

Resources

Package Contents

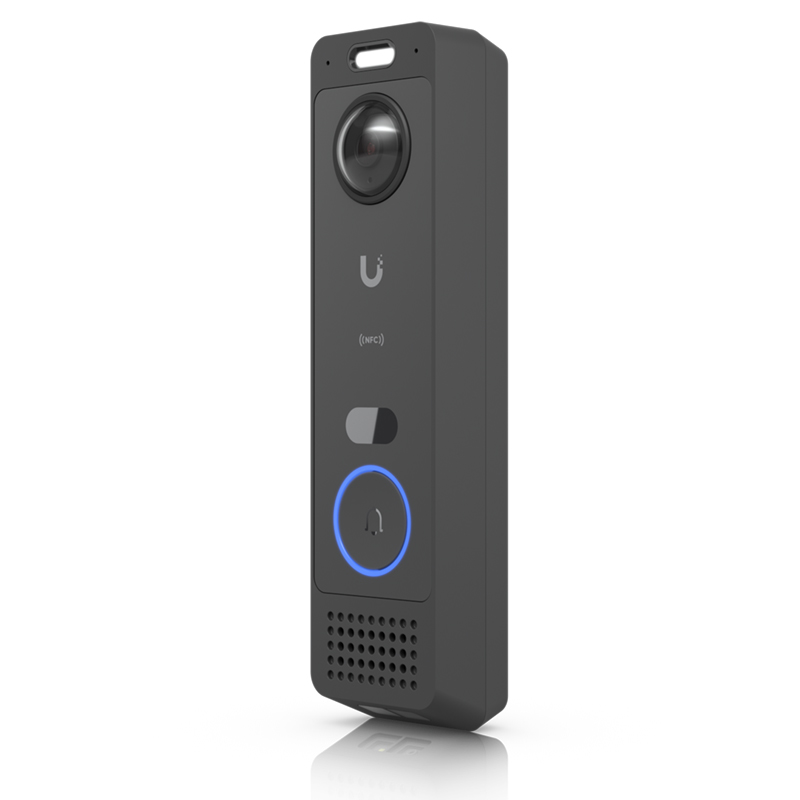

Ubiquiti UniFi UVC G6 Entry Intelligent Door Entry System. An intelligent door entry system with native UniFi Protect and UniFi Access integration, including enhanced two-way audio. G6 Entry prioritizes full person visibility for accurate face identification - delivering the ideal field of view for Face ID.

Note. 10 free 1-year Touch Passes included. To enable door access features such as NFC, Face ID, and Interface Designer configuration, an Access Hub is required, and both UniFi Protect and UniFi Access applications must be installed.

Features

Two-Way Intercom & Doorbell Access
NFC Card & Keyfob Access and Apple/Google Wallet compatible
Face Recognition
Two-way audio

Details
Manufacturer's Code	UVC-G6-Entry
Networking Interface	GbE RJ45 port
Connectivity	BLE 4.1, NFC
Power Method	PoE+
Max. Power Consumption	16W
Supported Voltage Range	42—57V DC
Video Image Settings	Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
Max. Frame Rate	Main camera: 30 FPS, Package camera: 3 FPS
Resolution	Main camera: 5MP, 1920 x 2560 (3:4), Package camera: 8MP 3264 x 2448 (4:3)
Optics Resolution	Main camera: 5MP CMOS, Package camera: 8MP CMOS
Field of View	Main camera: H: 100°, V: 135°, D: 180°, Package camera: H: 66°, V: 51.7°, D: 78°
Sensor	Main camera: 5MP CMOS, Package camera: 8MP CMOS
Lens	Fixed focal length
Night Mode	Built-in IR LED illumination and IR cut filter
LEDs	R/G/B/W
Button	(1) Ring button, (1) Factory reset, (1) Tamper switch
Processor	Quad-core Arm® Cortex®-A53 based chip
Weight	275 g (9.7 oz)
Enclosure Material	Aluminum
Mount Material	Wall mount: Stainless steel, Gangbox mount plate: SGCC steel, Gangbox mount cover: Polycarbonate, Wedge mount: Aluminum
Mounting	Wall mount, Gangbox mount plate, 20° wedge mount (Included), Junction box (Optional)
Dimensions	176 x 45 x 29.6 mm
Integrated Camera	Yes
IR Night Vision	5 m (16 ft)
Resolution	Main camera: 5MP, Package camera: 8MP
UniFi Application Suite	Protect, Access
Face Recognition	Yes
NFC Card & Keyfob Access	Yes
Apple/Google Wallet	Yes
Mobile Unlock	Yes
Two-Way Intercom & Doorbell Access	Yes
Weatherproofing	IP55
Smart Detections (People, Vehicles, Animals)	Yes
Tamper Resistance	IK07
Audio	Two-way audio
NDAA Compliant	Yes
Ambient Operating Temperature	-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity	5 to 90% noncondensing
Certifications	CE, FCC, IC
