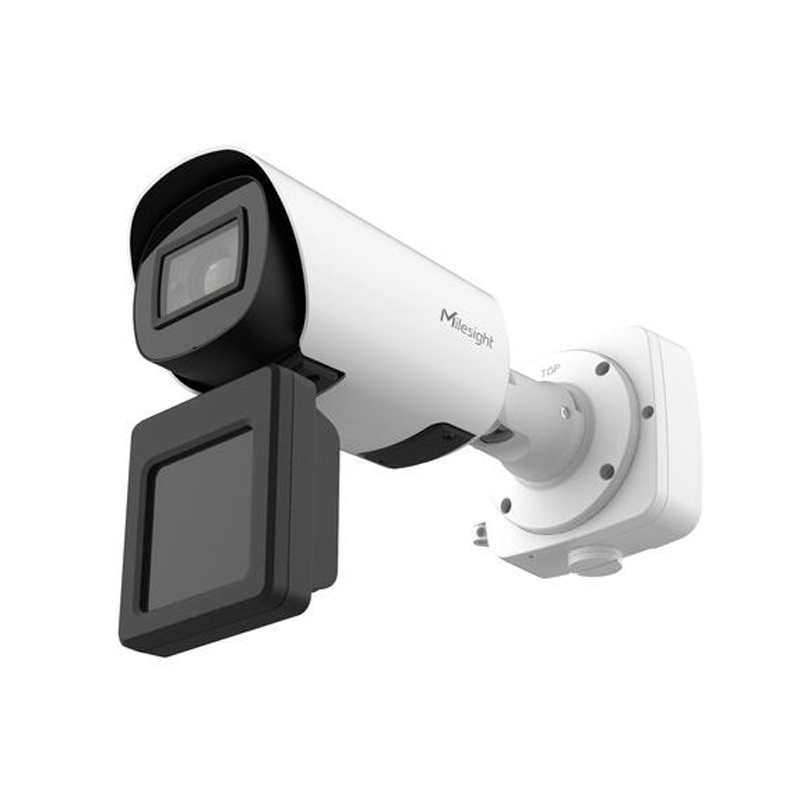

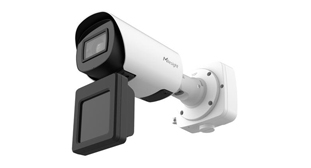

Milesight 2MP Entrance and Exit Supplement Light AI LPR Pro Bullet Plus Camera

$1,903.00 +GST
Login for your price
1 In Stock
SKU: MS-C2966-RFLWPE
Milesight 2MP Entrance and Exit Supplement Light AI LPR Pro Bullet Plus Camera - MS-C2966-RFLWPE
Warranty
Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*
Description
Specifications
Resources
Package Contents
Milesight 2MP Entrance and Exit Supplement Light AI LPR Pro Bullet Plus Camera.

Integrated with supplement light of IR LED Light and White LED Light, Entrance & Exit Supplement Light AI LPR Camera could turn on and off the supplement light, and change the luminance of the supplement lighting automatically, achieving a flexible way for the monitoring control.

To maximize the usability and compatibility, Milesight Entrance & Exit Supplement Light AI LPR Camera also supports Wiegand Protocol, which allows the easy open integration with third-party VMS or platforms to realize access control solutions effortlessly.

Allowlist/Blocklist Management and No-plate Event. Entrance & Exit AI LPR Camera enable to achieve stand-alone solutions for license plate recognition as well as no-plate vehicle detection. Alarm is triggered as soon as the corresponding rule-compliant license plate is detected, enabling efficient and accurate access control at any gate.

Based on built-in AI algorithm, Milesight Entrance & Exit AI LPR Camera can not only recognize vehicle plates in real time, but also identify various vehicle features, like vehicle type, brand, color, etc., generating reliable traffic insights to improve safety and efficiency for access control at both entrances and exits.

With LPR Smart Search relevant videos can be found quickly by searching for only a portion of the target suspect vehicle's features, such as vehicle brand, type & color, plate color, plate number, direction and etc., ensuring efficient event investigations and intelligent road traffic monitoring. It also supports manual export and auto export for easy management.

Features
  • Integrated Supplement Light
  • Wiegand Protocol for Access Control System
  • Intelligent AI-powered LPR Algorithm
  • Allowlist/Blocklist Management and No-plate Event
  • Evidence Camera Linkage
  • WDR Supported
  • Smart IR II Technology
  • Versatile Interfaces
  • NDAA Approved
Details
Product CodeMS-C2966-RFLWPE 2.7-13.5/A62/W
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: [email protected], B/W: 0Lux with IR on
WDR140dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
LensMotorized [email protected]
Field of ViewH113°~H33°/D130°~D38°/V60°~V18°
MountΦ14
Focus ControlAuto/Manual
Max. Vehicle Speed30km/h
Recognition Accuracy>98%
Coverage2 lanes
Country/Region SupportedMore than 80 countries and regions
ANPR DistanceUp to 20m
Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection
Smart Traffic FunctionEvidence Camera Linkage
White/Black ListUp to 20,000 records inside the camera
LPR Smart SearchSupport
Supplement LightWhite LED Light / IR LED Light
Light Bead6 (For White LED Light) / 9 (For IR LED Light)
Illumination DistanceMS-C2966-RFLWPE/W: Up to 20 m (IR); Up to 20 m (White Light), MS-C2966-RFLWPE/R: Up to 25m
Light ControlAuto/Always On/Off/Customize
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
WiegandStandard Wiegand 26-bit
RS485Support
Max. Image Resolution1920x1080
Primary Stream60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576); 50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240); 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240); 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System CompatibilityAPI, MQTT, HTTP, TCP, Wiegand Protocol, ONVIF Profile G & M & S & T
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerBlack/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
Working Temperature-40℃∼60℃
Working Humidity0∼95%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V±10%
Power ConsumptionMin.: 3.7W (DC 12V), 4.7W(PoE), Max.: 22W (DC 12V), 23.08W(PoE)
HousingUp to IP67-rated for weather-resistant performance
Surge Protection4KV
Weight1630g, 2075g (With Supplement Light)
Dimensions320mmX134mmX126mm, 320mmX134mmX231mm (With Supplement Light)
NDAA ApprovedYes
EMCCE-EMC (EN 55032, EN 55035), FCC (PART 15B)
SafetyCE-LVD (EN IEC 62368-1)
EnvironmentCE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)
Details
ContentsWarranty card, QSG, Wall mount, mounting screws and tightening tool included
Power SupplyNot included
100Mbps
RJ45
