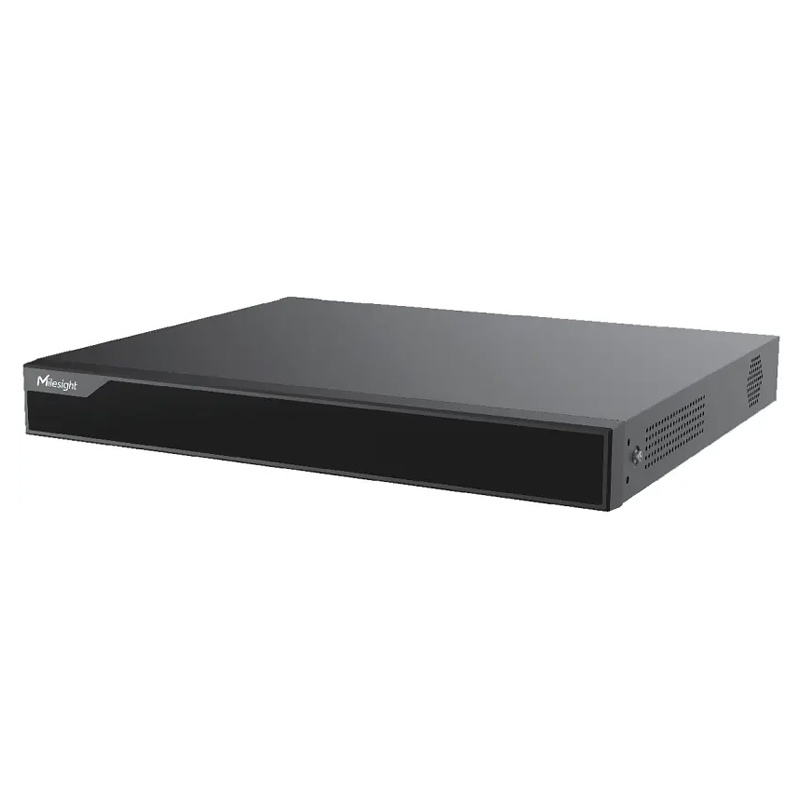

Milesight Open Vision Server Mini 16 Channel

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Supported Platforms

Description

Description

Specifications

Resources

Package Contents

Milesight Openvision Server is a pre-configured, plug-and-play surveillance platform that comes with Nx VMS Server embedded. Designed for fast and hassle-free deployment, it combines powerful hardware and intelligent video management software in one compact system.

Features

Ubuntu 22.04.4 LTS Desktop on M.2 SSD
Nx Witness Server Preinstalled
2 SATA Disks Support
Calendar / Event / Bookmark / Smart Search
Dual Stream Recording, N+MFailover Support
Server Clustering Support
HDMI, DP Display Port Support

Details
Product Code	SE0201-K/Nx
Main Processor	Intel Celeron Series, 4C 4T @2.00 GHz
Memory	2*4GB DDR4
Firmware Storage	32GB eMMC
Operating System	Linux Ubuntu 22.04.5 LTS DesktopGPU Options
Auto Power On	Support
Video Compression	H.265, H.264, MJPEG
Recording Bandwidth	Max. 144Mbps
Resolution	12MP ~ CIF
Mode	Continuous, Motion, Events, Objects, Dual Stream
Edge Analytics	Analytics Events:CCTV (Intrusion Detection/ Region Entrance/ Region Exit/ Advanced Motion Detection/ Line Crossing/ Loitering/ Object Left/Object Removed/ Object Counting/ Regional People Counting);LPR (Attribute Event/ Black List/ White List/ Visitor Event/ Speed Monitoring/ No Plates/ Reverse Driving);Object Detected Events (person and vehicle with attribute/ face)Smart Search:CCTV: Person (Hat, Top Clothing Color, Bottom Clothing Color),Vehicle (Vehicle Type), Face (Gender, Age, Mask, Cap, Glasses);LPR: Vehicle (Color, Vehicle Type, Brand, Speed, Direction),License Plate (Number, Color, Country, Plate Type)
Event Action	Bookmark, Camera Output, Camera Recording, Do HTTP(S) Request, Execute PTZ Preset, Play Sound, etc.
Supported HDD	Up to 20TB per disk
HDD Slot	SATA*2
Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, SNMP(Client), HTTPS, ONVIF
Compression	G.711/AAC/G.722/G.726
Audio Communication	2-way
Ethernet	2*1000Mbps Ethernet Port
Display	2HDMI Port, 1DP Port Note: Display ports are for system setup and diagnostics only. They do not support video playback or desktop display.
Audio	1BNC In, 1BNC Out
USB Interface	Rear panel: 2USB 2.0, 2USB 3.0, 1*USB-C Port
Power Supply	AC 100-240V, 50-60Hz, DC 12V
Consumption	≤30W (without HDD)
Working Temperature	0°C to 35°C (32°F to 95°F)
Working Humidity	10% to 90% RH (no freezing and no condensation)
Dimension	380mm(W) X 317.6mm(D) X 51.8mm(H)
Weight	2.2 Kg
Warranty	3 Years
