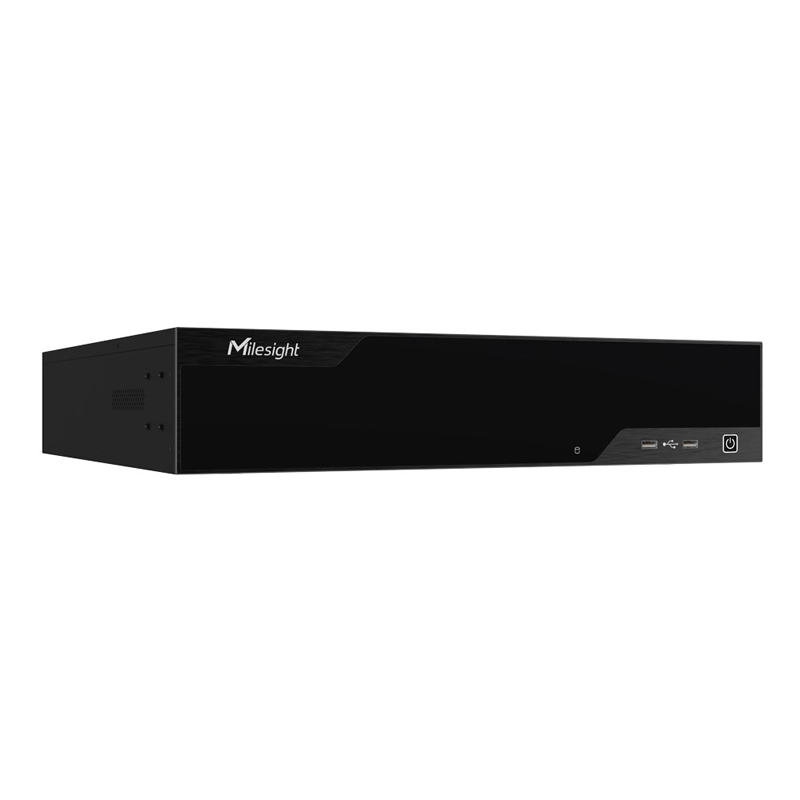

Milesight All-in-one Video Surveillance Appliance provides a systematic and professional solution with video input, storage, transfer and device management functions. It is pre-loaded with latest Windows-based Milesight VMS Enterprise system and 36 licenses to deliver a ready to deploy solution.
The Milesight Pre-configured latest VMS system is free to install and configure in minutes. Client/Server architecture achieves centralized resource management. Device, Recording, Users & Roles, Event & Alarm management and other complex needs can be met by one system.
Load Balancing delivers increased scalability and flexibility. N+M Failover ensures uninterrupted recording and boosts risk resistance.
The Milesight Pre-configured latest VMS system is free to install and configure in minutes. Client/Server architecture achieves centralized resource management. Device, Recording, Users & Roles, Event & Alarm management and other complex needs can be met by one system.
Load Balancing delivers increased scalability and flexibility. N+M Failover ensures uninterrupted recording and boosts risk resistance.
Features
- Pre-loaded with Milesight VMS Server & Client
- Central Management for Single Site & Multiple Sites
- High Scalability
- 6*20TB Storage
- Ready-to-go Design for Easy Installation
- N+M Failover
| Details | |
|---|---|
| Devices Included Camera Access License | 16 |
| Recording Recording Schedule | 16 |
| Video Format | MJPEG, H.264, H.265 |
| Decoding Resolution | Up to 12 MP |
| Decoding Capability | Display with 1080P Monitor D1(704*576)@30fps=16ch,2MP(1920*1080)@30fps=16ch,5MP(2592*1944)@30fps=11ch,12MP(4000*3000)@20fps=5ch |
| Event and Alarm Rules | 1000 |
| Concurrent Accesses via Clients, App Clients | 300 |
| Users | 1000 |
| Roles | 100 |
| Local Viewing | Supported |
| Main Processor | 2.0 GHz Intel Celeron |
| Memory | 4GB*2 DDR4 |
| Network Interface | 2.5 GbE RJ-45 ports*4 |
| Operating System | Microsoft Windows 10 IoT Enterprise 64bit |
| GPU Options | Integrated GPU |
| Auto Power On | Support |
| HDD Drives (Video Data) | 6*SATA (3.5" or 2.5") |
| SSD Drive (Operating System) | M.2*2SSD(256 GB*1 Pre-installed) |
| RAM | SO-DIMM DDR4 2666 Slot*2 (4GB*2 Pre-installed) Support Up to 16GB Support Dual-Channel Mode |
| Capacity | Up to 20TB capacity for each disk |
| Recording Storage Capacity | Up to 6*20TB raw |
| LAN | 4*2.5Gbps LAN |
| PCI-E | 1*PCI-E4 slot |
| Display | 1*HDMI Port,1*DP Port Support independent and synchronous display |
| Internal I/O | 1*Power Connector(ATX_PWR 24pin),1*Power Connector(CPU_PWR 4pin),1*CPU Fan,1*COM Connector (9pin),1*Front Panel Connector |
| Audio | 1* HD Audio Connector |
| USB Interface | Front panel: 2*USB 2.0, Rear panel: 2*USB 2.0, 2*USB 3.0 |
| Power Supply | AC 100-240V, 50-60Hz |
| Consumption | ≤30W(without HDD) |
| Working Temperature | -10°C to 55°C (14°F to 131°F) |
| Working Humidity | 10% to 90% RH (no freezing and no condensation) |
| Dimension | 440mm×420mm×88.2mm |
| Weight | 8.1Kg |
| Warranty | 3 Years |
| Details | |
|---|---|
| Contents | Warranty card, QSG |
| Power Supply | Included |
100Mbps
RJ45
White
POE (802.3af)
