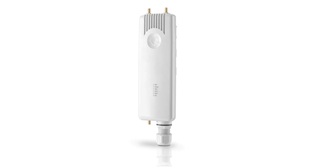

Cambium ePMP 3000L 5 GHz Access Point Radio FSR (Focused Spectrum Range) 5.1-5.98 GHz.
High-Performance Connectivity with Flexible Deployment Options
Cambium Networks’ ePMP product line has set the standard for high performance, scalability, and reliability in harsh interference environments, all at a compelling price. The ePMP 3000L FSR Access Point (AP) is the third-generation AP that carries on the interference tolerance mechanisms with an emphasis on high-performance, low-density point-to-multipoint sectors.
The ePMP 3000L FSR is a 2x2 MIMO connectorized access point that can support a wide variety of deployments, including 90°/120° sectors, narrow sector horns, or even 360° omni coverage. Additionally, it continues interference mitigation techniques with support of TDD synchronization using GPS and ePMP’s robust software.
The ePMP 3000L FSR AP system consists of the ePMP 3000L FSR AP, an optional 2x2 sector antenna, and a wide variety of subscriber modules (SM) with varying form factors and link budgets.
High-Performance Connectivity with Flexible Deployment Options
Cambium Networks’ ePMP product line has set the standard for high performance, scalability, and reliability in harsh interference environments, all at a compelling price. The ePMP 3000L FSR Access Point (AP) is the third-generation AP that carries on the interference tolerance mechanisms with an emphasis on high-performance, low-density point-to-multipoint sectors.
The ePMP 3000L FSR is a 2x2 MIMO connectorized access point that can support a wide variety of deployments, including 90°/120° sectors, narrow sector horns, or even 360° omni coverage. Additionally, it continues interference mitigation techniques with support of TDD synchronization using GPS and ePMP’s robust software.
The ePMP 3000L FSR AP system consists of the ePMP 3000L FSR AP, an optional 2x2 sector antenna, and a wide variety of subscriber modules (SM) with varying form factors and link budgets.
Features
- 2X2 MIMO support with peak throughput of 600 Mbps
- 256QAM-5/6, 80 MHz support
- Focused Spectrum Range Model (5100–5980 MHz)
- Frequency re-use with GPS sync and interference mitigation
- Connectorized for use with Cambium 90°/120° sector antennas & RF Elements TwistPort™
- Adaptor for ePMP™
- Free Cloud or on-premises network management with cnMaestro
- IP67 Outdoor rating
- 3 Year standard warranty
| Details | |
|---|---|
| Product Code | C050911A221A |
| Frequency Range | 5100–5980 MHz (exact frequencies as allowed by local regulations) |
| Channel Width | 20 / 40 / 80 MHz |
| Transmit Power Range | 0 to +29 dBm (combined, to regional EIRP limit) (1 dB interval) |
| MAC (Media Access Control) Layer | Cambium Proprietary |
| Physical Layer | 2X2 MIMO/OFDM |
| Ethernet Interfaced | 100/1000BaseT, rate auto negotiated |
| Network Management | HTTPS, SNMPv2c, SSH |
| VLAN | 802.1Q with 802.1p priority |
| Sector Antenna Connection | 2x50 ohm, RP (reverse polarity) SMA; Also compatible with RF Elements TwistPort Adaptor for ePMP |
| GPS Antenna Connection | 1 x 50 ohm, RP (Reverse Polarity) SMA; Optional external GPS Puck Antenna available model N000900L030A |
| Powering Methods Supported | 29 V Cambium PoE (included) |
| Power Consumption | 12W (up to 15W in extreme cold temperatures when heater activated) |
| Input Voltage | 29 Volts Nominal (14V to 30V Range) |
| Environmental | IP67 and IP68 compliant |
| Temperature | -30°C to +60°C |
| Weight | 0.5 kg (1.1 lb) without bracket |
| Dimensions | 84 x 223 x 32 mm without brackets |
| Details | |
|---|---|
| Power Supply | Included |
| Pole Mounting Kit | Included |
| Ethernet Gland | Included |
cnMaestro
Proprietary
RP-SMA
5GHz
PoE (non standard)
