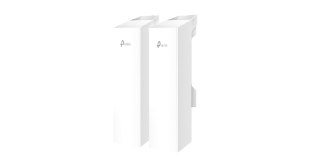

Omada EAP215-Bridge-Kit 5Ghz Pre-Configured Bridge Kit
Features
- 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate
- Ideal for long-range wireless transmission up to 5 km
- Up to 70° Beamwidth for Wider Deployment
- Standalone or Omada SDN Mode
- Auto-pairing and agile LEDs for efficient deployment
- 3× Gigabit Ethernet ports for more high-speed IP camera connections
- Supports Omada SDN for remote and centralised management
- IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability
- Supports Passive PoE for flexible deployment (adapter included)
| Details | |
|---|---|
| Manufacturer's Code | EAP215-Bridge-Kit |
| Interface | 3x Gigabit Ethernet Ports |
| Button | Reset |
| Power Supply | 12V DC / 24V Passive PoE (Passive PoE adapter included.) |
| Maximum Power Consumption | 11.5W |
| Dimensions ( W x D x H ) | 79 × 60 × 224 mm |
| Antenna Gain | 11 dBi |
| Antenna Beamwidth | Horizontal:35°, Vertical: 35° |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole Mounting (Accessories included) |
| Transmission Power | 30dBm EIRP |
| Certification | CE, FCC, RoHS |
| Operating Temperature | -40 °C–70 °C |
| Storage Temperature | -40 °C–70 °C |
| Operating Humidity | 10%–90% non-condensing |
| Storage Humidity | 5%–90% non-condensing |
| Details | |
|---|---|
| Power Supply | 3 Pin Clover Lead |
| Power Injector | Included |
Omada
1Gbps
Proprietary
5GHz
PoE (non standard)
