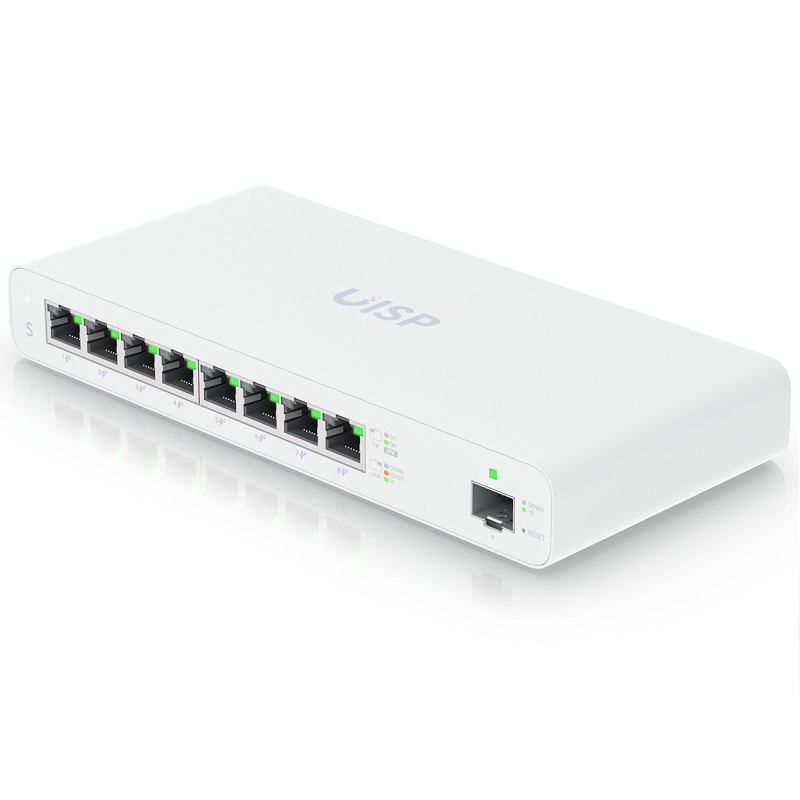

Ubiquiti UISP Gigabit PoE switch for MicroPoP Applications. Eight-port, Layer 2, Gigabit PoE switch designed for MicroPoP applications and building secure, high-performance networks.
Ideal for wireless ISP (WISP) deployments, the UISP Switch is a fanless, Layer 2 PoE switch with (8) GbE RJ45 ports and (1) 1G SFP port for an additional uplink option. The UISP Switch is a cost-effective solution for WISPs looking to quickly and inexpensively deliver Gigabit wireless speeds to their customers. With its hefty 110W total PoE supply, the UISP Switch delivers substantial power to every radio in your service network. For larger deployments, pair it with the UISP Console to create a cohesive routing and switching hub. The UISP Switch is managed with the UISP application, a centralized platform where you can monitor and manage all of your UISP devices.
Ideal for wireless ISP (WISP) deployments, the UISP Switch is a fanless, Layer 2 PoE switch with (8) GbE RJ45 ports and (1) 1G SFP port for an additional uplink option. The UISP Switch is a cost-effective solution for WISPs looking to quickly and inexpensively deliver Gigabit wireless speeds to their customers. With its hefty 110W total PoE supply, the UISP Switch delivers substantial power to every radio in your service network. For larger deployments, pair it with the UISP Console to create a cohesive routing and switching hub. The UISP Switch is managed with the UISP application, a centralized platform where you can monitor and manage all of your UISP devices.
Features
- (8) GbE RJ45 ports with 27V passive PoE output
- (1) SFP port
- 110W (27V) total PoE availability*, 15W/port (2-pair) / 30W/port (4-pair) When powered with the included AC/DC adapter
- Port isolation, speed limiting, and DHCP snooping functionality
- Easy Bluetooth setup with the UISP Mobile app
| Details | |
|---|---|
| Manufacturer's Code | UISP-S-AU |
| Total non-blocking throughput | 9 Gbps |
| Switching capacity | 18 Gbps |
| Forwarding rate | 13.392 Mpps |
| Networking interface | (8) GbE RJ45 ports, (1) 1G SFP port |
| Management interface | Ethernet In-band, Bluetooth BLE |
| Power method | External AC/DC adapter |
| Power supply | 27V DC, 4.4A power adapter (included) |
| Supported voltage range | 24—28V DC |
| Max. power consumption | 8W (Excluding PoE output) |
| ESD/EMP protection | Air: ± 15kV, contact: ± 8kV |
| PoE interface | (8) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-) |
| Total available PoE | 110W |
| Max. passive PoE wattage per port | 30W/27V DC |
| Passive PoE voltage range | 27V DC |
| Management application | UISP: Version 1.4.0 and later |
| Dimensions | 210.4 x 95 x 29 mm (8.3 x 3.7 x 1.1") |
| Weight | 610 g (1.3 lb) |
| Enclosure material | Polycarbonate |
| Operating temperature | -10 to 50° C (14 to 122° F) |
| Operating humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC, IC |
| Details | |
|---|---|
| Power Supply | 27VDC, 4.4A power adapter included |
| Mounting Hardware | Wallmount |
1Gbps
RJ45 , SFP
