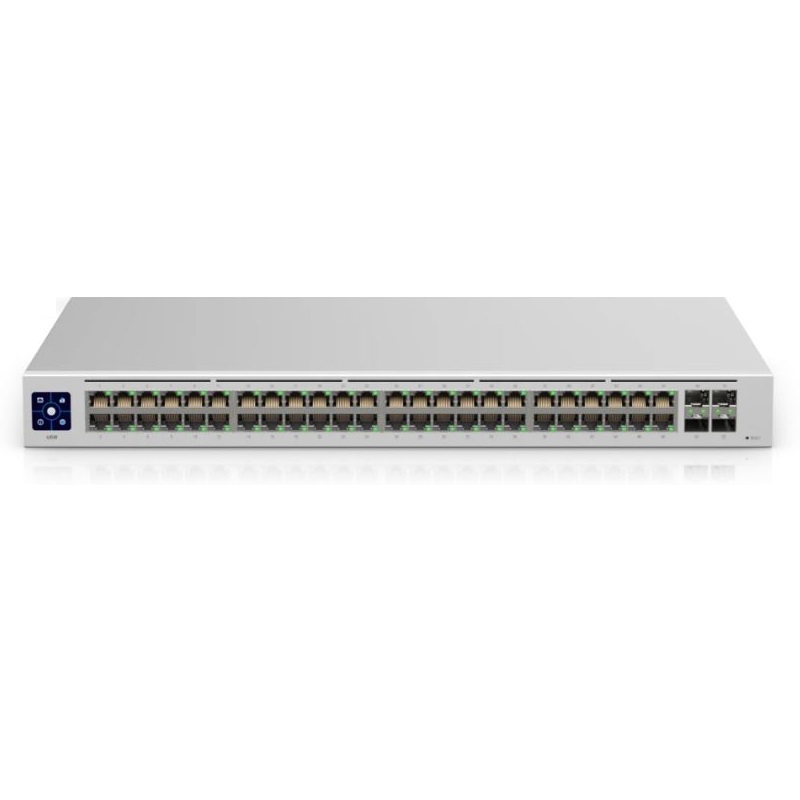

Ubiquiti UniFi Switch 48 fully managed Layer 2 switch with (48) Gigabit Ethernet ports and (4) 1G SFP ports for fiber connectivity (Non PoE).

The UniFi Switch 48 features a rich set of Layer 2 capabilities and fanless, silent cooling for use as an access layer switch. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.

Features

(48) Gigabit RJ45 ports
(4) 1G SFP ports
Layer 2 features
Fanless, silent cooling
1.3" touchscreen display, supports UniFi Network AR
Managed by UniFi Network Controller (5.13.10 or later)

Details
Manufacturer's Code	USW-48-AU
Total Non-Blocking Line Rate	52 Gbps
Max. Power Consumption	40W
Forwarding Rate	77.376 Mpps
System LED's	(1) Bootup Animation: Bootup in Progress, Firmware Upgrade Icon: Firmware Upgrading, Steady White: Factory Defaults, Awaiting Adoption, Steady Blue: Device is Adopted
Ethernet LED's	Green: 1G, Amber: 10/100 Mbps
SFP LED's	Green: 1G
Power Method	Universal AC Input: 100-240VAC, 50/60 Hz
Power Supply	AC/DC, Internal, 60W
Supported Voltage Range	100 - 240VAC
Networking Interfaces	(48) 10/100/1000 Mbps Ethernet RJ45 Ports, (4) 1 Gbps SFP Ports
Management Interface	Ethernet In-Band
Modes	SMB Layer 2 Gigabit Ethernet Switch
Operating Temperature	-15 to 40 degC (5 to 104° F)
Operating Humidity	10 - 90% Noncondensing
Dimensions	442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72")
Weight	Without Mount: 3.9 kg (8.6 lb), With Mount: 3.99 kg (8.8 lb)
Enclosure Characteristics	SGCC Steel
Certifications	CE, FCC, IC
