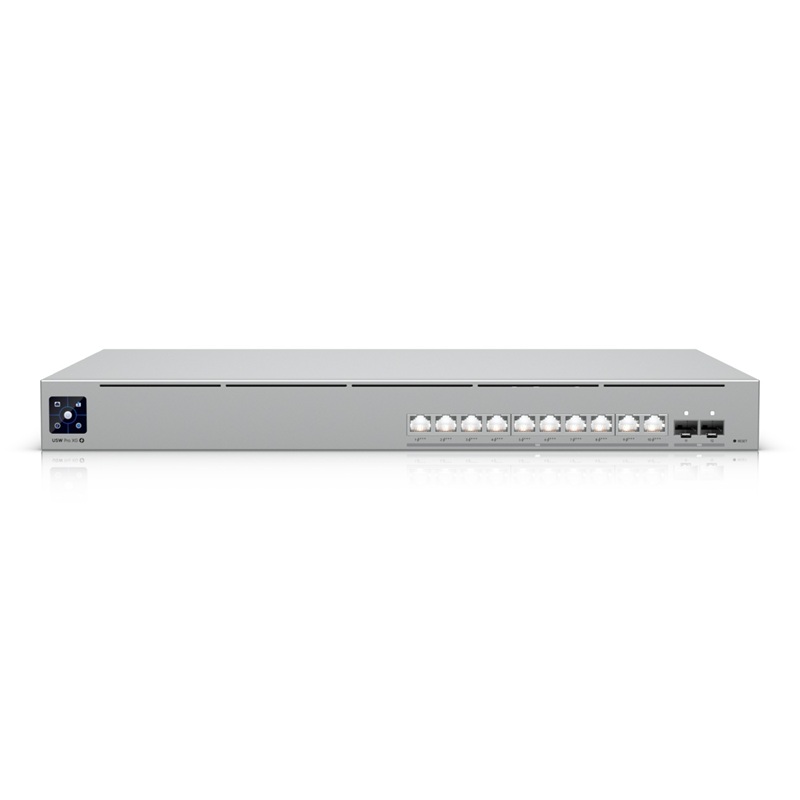

Ubiquiti UniFi Pro XG 10 PoE 1U, professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE and (2) 10G SFP+ ports

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Description

Description

Specifications

Resources

Package Contents

Ubiquiti Switch Professional XG 10 PoE+++ Managed Layer 3, PoE switch with 10 x 10GbE, 802.3bt PoE+++ RJ45 ports and 2 x 10G SFP+ ports and 400W total PoE availability

Features

10 Gigabit POE+++ Ethernet
Pro AV Support
DC Power Backup

Details
Manufacturer's Code	USW-Pro-XG-10-PoE
Dimensions	442.4 x 285 x 44 mm
Port Layout	10 x 10 GbE RJ45 (All PoE+++) (10G/5G/2.5G/1G/100M), 2 x 10G SFP+ (10G/1G)
Max. PoE Output	Up to PoE+++
Max. PoE Wattage per Port by PSE	PoE: 15.4W, PoE+: 30W, PoE++: 60W, PoE+++: 90W
Total PoE Availability	400W
Redundancy	DC Power Backup
Layer 3	Yes
Form Factor	Rack mount (1U)
Etherlighting™	Yes
Switching Capacity	240 Gbps
Total Non-Blocking Throughput	120 Gbps
Forwarding Rate	179 Mpps
Supported VLANs	1,000
MAC Address Table Size	32,000
L3 Table Size	ARP Entries: 12,000, IPv4 Routes: 12,000
Packet Buffer Size	2 MB
Access Lists	IPv4: 128, MAC: 128
Layer 3 Features	DHCP Server (Local Networks), DHCP Relay, Inter-VLAN Routing (Local Networks), Static Routing (Local Networks)
Layer 2 Features	LACP Port Aggregation, STP & RSTP, QoS (DSCP), Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron), Advanced IGMP Configuration (Querier, Fast Leave, Router Port), IGMP Snooping, 802.1X Control, MAC-Based ACLs & Device Isolation, DHCP Snooping & Guarding, Egress Rate Limit, Flow Control, Storm Control, Multicast & Broadcast Rate Limiting, MAC Address Blocking, IP-Based ACLs & Network Isolation, MAC-Based Port Restriction, Port Isolation, Port Mirroring, Jumbo Frames, LLDP-MED, Voice VLAN, Loop Protection
Max. Power Consumption	65W (Excluding PoE output), 520W (Including PoE output)
Power Method	(1) Universal input, 100—240V AC, 50/60 Hz, (1) USP RPS DC input
Power Input Method	AC input
Power Supply	AC/DC, internal, 550W
Supported Voltage Range	100—240V AC
Management	Ethernet, AR
Weight	Without mounting brackets: 4.6 kg (10.14 lb), With mounting brackets: 4.7 kg (10.36 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Supported Rack Depth	400~1200 mm (15.7-47.2"")
LCM Display	1.3" touchscreen
ESD Protection	Air: ± 30kV, contact: ± 30kV
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
Etherlighting™	Ethernet, SFP+
LEDs	RPS, System
NDAA Compliant	Yes
Certifications	CE, FCC, IC
Software Application Requirements	UniFi Network Version 9.1.120 and later
